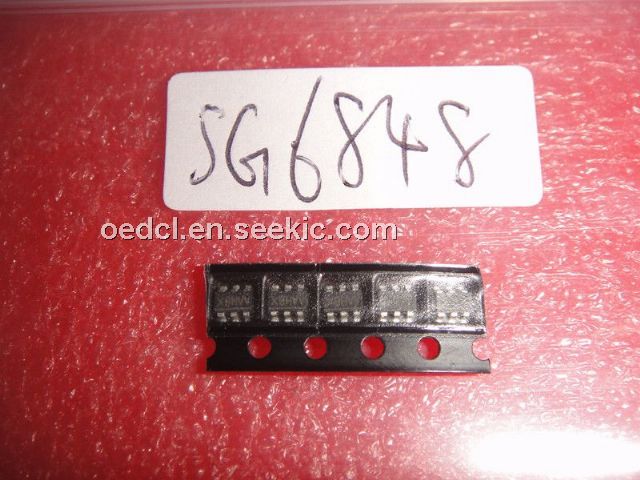

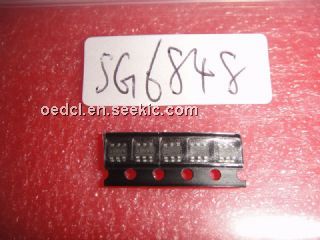

SG6848

highly-integrated PWM controller, -0.3 to 6V, 300mW, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece

PartNumber:: SG6848

Brand:: Artesyn Technologies - Artesyn | Pack: SOT | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-09

From Other Seller

Part Number:SG6848
US $0.80 - 1.00
Quantity:

piece

Product Summary

The sg6848 is a highly-integrated PWM controller. The sg6848 provides several special enhancements designed to meet the low standby-power needs of low-power SMPS. Applications of the sg6848 include: Battery chargers for cellular phones, cordless phones, PDAs, digital cameras, and power tools, Power adapters for ink jet printers, video game consoles, and portable audio players, Open-frame SMPS for TV/DVD standby and other auxiliary supplies, home appliances, and consumer electronics, Replacements for linear transformers and RCC SMPS and PC 5V standby power.

Parametrics

sg6848 absolute maximum ratings: (1) DC Supply Voltage VDD: 25V, 26V (Zener Clamp) ; (2) Zener Clamp: 10mA; (3) Input Voltage to FB Pin VFB: -0.3 to 6V; (4) Input Voltage to Sense Pin Vsense: -0.3 to 6V; (5) Power Dissipation Pd: 300mW; (6) Operating Junction Temperature Tj: 150°C; (7) Thermal Resistance (Junction to Air) RθJA: 208.4°C/W, 82.5°C/W (DIP-8) ; (8) Storage Temperature Range Tstg:-55 to +`150°C.

Features

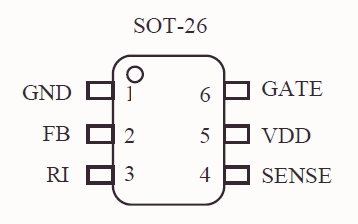

sg6848 features: (1) Green-Mode PWM; (2) Supports the Blue Angel Standard; (3) Low Start-up Current (5uA) ; (4) Low Operating Current (2mA) ; (5) Leading-Edge Blanking; (6) Constant Output Power Limit; (7) Gate Output Voltage Clamped at 15V; (8) Cycle-by-cycle Current Limiting; (9) Few External Components Required; (10) Small SOT-26 Package.
