Product Summary

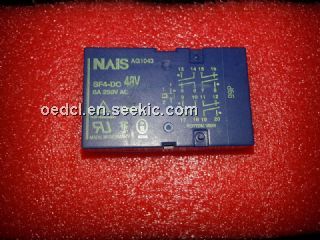

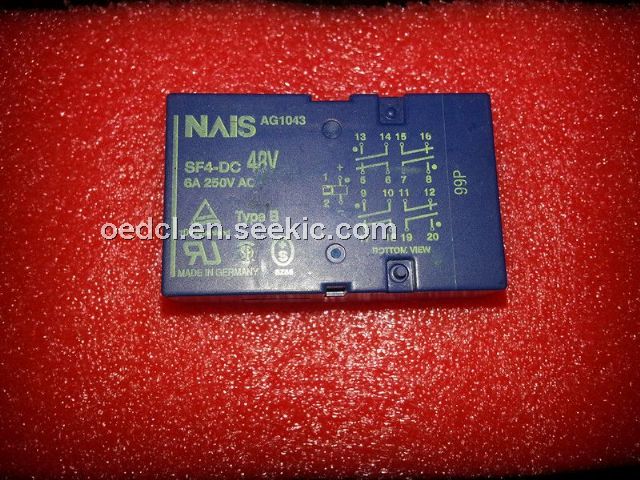

The sf4-dc48v is a polarised, monostable safety relay with (mechanical linked) forced contacts operation. Applications of the sf4-dc48v include: Signal, Escalator, Elevator, Medical Instruments, Railway and Factory Automation.

Parametrics

sf4-dc48v absolute maximum ratings: (1) Max. switching power: 1,500VA, 180W; (2) Max. switching voltage: 30 V DC, 440 V AC; (3) Max. carrying current: 6 A DC, AC; (4) Nominal operating power: 500mW.

Features

sf4-dc48v features: (1) Forced operation contacts (2 Form A 2 Form B, 3 Form A 1 Form B) ; (2) Independent operation contacts (4 Form A 4 Form B) ; (3) Separated chamber structure (2 Form A 2 Form B, 3 Form A 1 Form B, 4 Form A 4 Form B) ; (4) UL/CSA, T(R)πV, SEV approve.

Diagrams

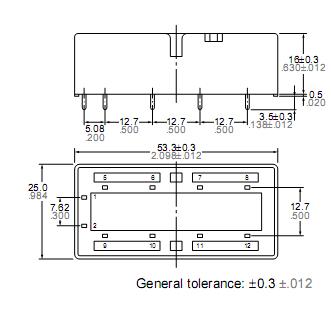

sf4-dc48v dimension
