Product Summary
The SC9149A is a CMOS LSI designed for use on the infrared remote control receiver, and when this LSI is used in combination with SC9148A for transmitter, the remote control system can be constructed. The SC9149A is DIP-16 type and is capable of controlling 10 functions.
Parametrics
SC9149A absolute maximum ratings: (1)Supply Voltage, VDD: 0 ~ 6.0 V; (2)Input / Output Voltage, VIN,VOUT: Vss-0.3V ~ VDD+0.3V; (3)Power Dissipation, PD: 200 mW; (4)Operating Temperature, Tamb: -20 ~ +75℃; (5)Storage Temperature, Tstg: -55 ~ +125℃.
Features
SC9149A features: (1) Able to output parallel multiple keying signals sent from the transmitter; (2)Output for single pulse, hold pulse and cyclic pulse are provided; (3)A single terminal type oscillator by means of CR is provided; (4)Code detection circuit provided for code check with the transmitter prevents inter-ferences from various types of machines and apparatus.

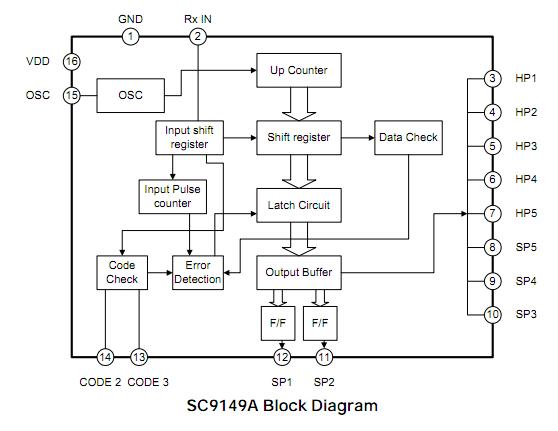

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SC9149A |
Other |
|
Data Sheet |
Negotiable |
|
||||
