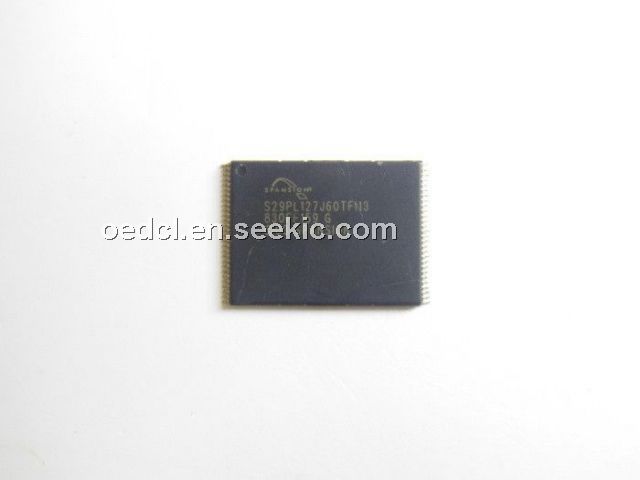

Product Summary

The S29PL127J60TF113 is a Flash memory. This device can be programmed in-system or in standard EPROM programmers. A 12.0V VPP is not required for write or erase operations. The device offers fast page access times of 20 to 30ns, with corresponding random access times of 55 to 70ns, respectively, allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable(CE#), write enable(WE#)and output enable(OE#)controls. Note: Device PL129J has 2 chip enable inputs (CE1#, CE2#).

Parametrics

S29PL127J60TF113 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1): -0.5V to +4.0V, A9, OE#, ACC and RESET#(NOTE2): -0.5V to +13V, All other pins(Note 1): -0.5V to VCC+0.5V; (4)Output Short Circuit Current (Note 3): 200mA.

Features

S29PL127J60TF113 features: (1)Single power supply operation; (2)Simultaneous Read/Write Operation; (3)Page access times as fast as 20ns; (4)Random access times as fast as 55ns; (5)45mA active read current; (6)Suspends an erase operation to allow read or program operations in other sectors of same bank.

Diagrams

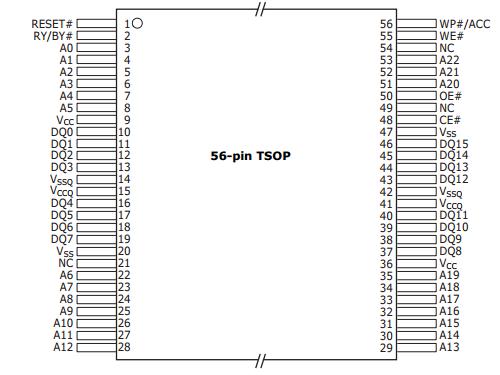

S29PL127J60TF113 pin connection
