Product Summary

The S29GL128P90TFCR2 is a Page Mode Flash Memory. The S29GL128P90TFCR2 offers a fast page access time of 25 ns with a corresponding random access time as fast as 90 ns. The S29GL128P90TFCR2 features a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes the S29GL128P90TFCR2 ideal for today embedded applications that require higher density, better performance and lower power consumption.

Parametrics

S29GL128P90TFCR2 absolute maximum ratings: (1)Storage temperature, plastic packages: –65 to +150℃; (2)Ambient temperature with power applied: –65 to +125℃; (3)Voltage with respect to ground, all inputs and I/Os except as noted below:–0.5 V to VCC + 0.5 V; VCC: –0.5 V to +4.0 V; VIO: –0.5V to +4.0V; A9 and ACC: –0.5 V to +12.5 V; (4)Output short circuit current: 200 mA.

Features

S29GL128P90TFCR2 features: (1)Single 3V read/program/erase (2.7-3.6 V); (2)Enhanced versatilei/o control: All input levels (address, control, and DQ input levels) and outputs are determined by voltage on VIO input. VIO range is 1.65 to VCC; (3)90 nm mirrorbit process technology; (4)8-word/16-byte page read buffer; (5)32-word/64-byte write buffer reduces overall programming time for multiple-word updates; (6)Secured silicon sector region: 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random electronic serial number; Can be programmed and locked at the factory or by the customer; (7)Uniform 64kword/128kbyte sector architecture; (8)100,000 erase cycles per sector typical; (9)20-year data retention typical.

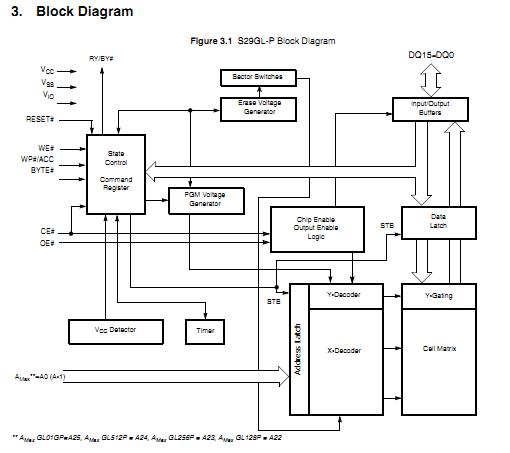

Diagrams

S29GL128P90TFCR2 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

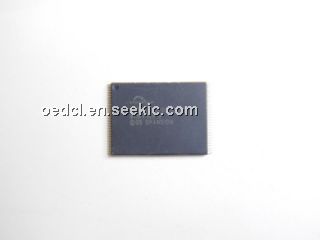

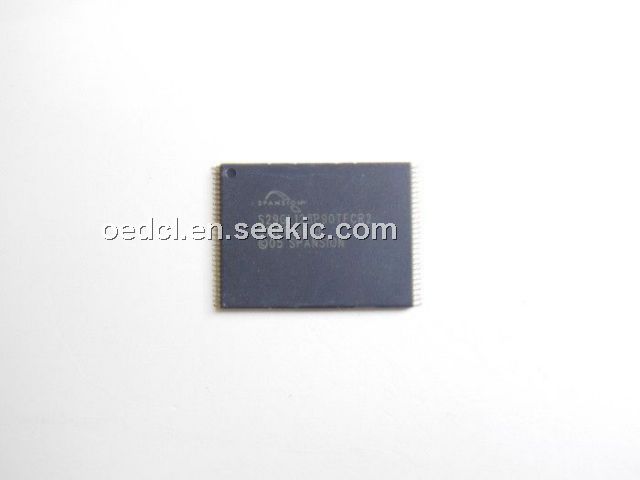

S29GL128P90TFCR20
S29GL128P90TFCR20
Spansion
Flash 128MB 3.0-3.6V 90ns PBF
Data Sheet
0-182: $2.27
182-546: $2.17
546-1001: $2.11
S29GL128P90TFCR23
S29GL128P90TFCR23
Spansion
Flash 128M 3.0V 90ns Page-Mode Sim R/W
Data Sheet
0-1000: $2.16
