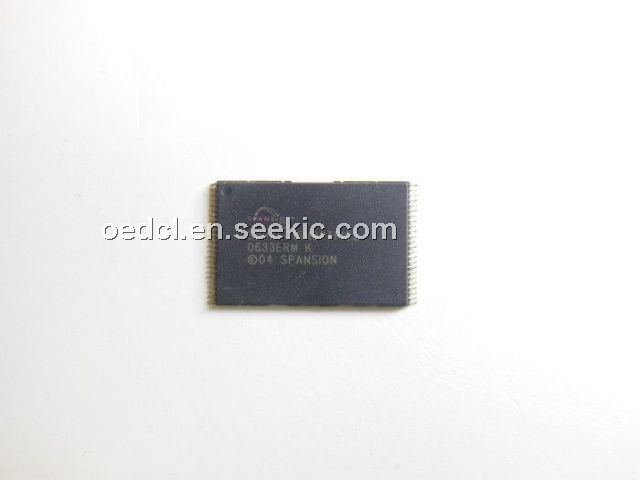

Product Summary
The S29AL016M90TFI02 is a 16 Mbit, 3.0 Volt-only Flash memory. The device is offered in a 48-ball Fine-pitch BGA, 64-ball Fortified BGA, and 48-pin TSOP packages. The word-wide data (×16) appears on DQ15–DQ0; the byte-wide (×8) data appears on DQ7–DQ0. The device requires only a single 3.0 volt power supply for both read and write functions,
designed to be programmed in-system with the standard system 3.0 volt VCC supply. The device can also be programmed in standard EPROM programmers.
Parametrics
S29AL016M90TFI02 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1): -0.5V to +4.0V, A9, OE#, and RESET# (Note 2): -0.5V to +12.5V, All other pins (Note 1): -0.5V to VCC+0.5V; (4)Output Short Circuit Current (Note 3): 200mA.
Features
S29AL016M90TFI02 features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; (4)Sector Protection: hardware-level method of preventing write operations within a sector; (5)Temporary Sector Unprotect: VID-level method of changing code in locked sectors.

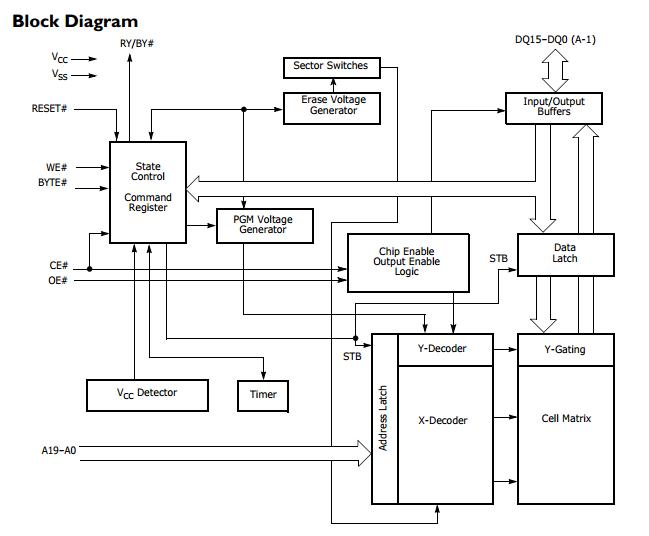

Diagrams
