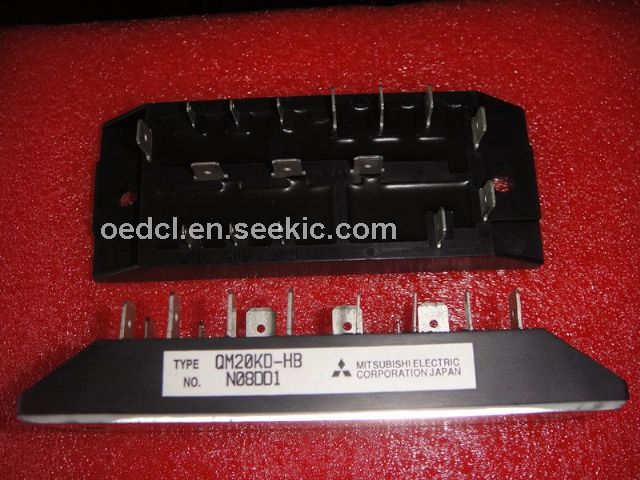

Product Summary

The QM20KD-HB is a MITSUBISHI TRANSISTOR MODULE. The applications of the QM20KD-HB are Inverters, Servo drives, DC motor controllers, NC equipment, Welders.

Parametrics

QM20KD-HB absolute maximum ratings: (1)Collector-emitter voltage VCEX (IC=1A, VEB=2V): 600V; (2)Collector-base voltage VCBO: 600V; (3)Emitter-base voltage VEBO: 7V; (4)Collector current IC: 20A; (5)Collector dissipation PC(Tc=25): 83W; (6)Base current IB: 1A; (7)Surge collector reverse current(forward diode current) ICSM: 200A; (8)Junction temperature Tj: -40℃ to +150℃; (9)Storage temperature TSTG: -40℃ to +125℃; (10)Isolation voltage Viso: 2500V.

Features

QM20KD-HB features: (1)IC Collector current: 20A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 250; (4)Insulated Type; (5)UL Recognized.

Diagrams

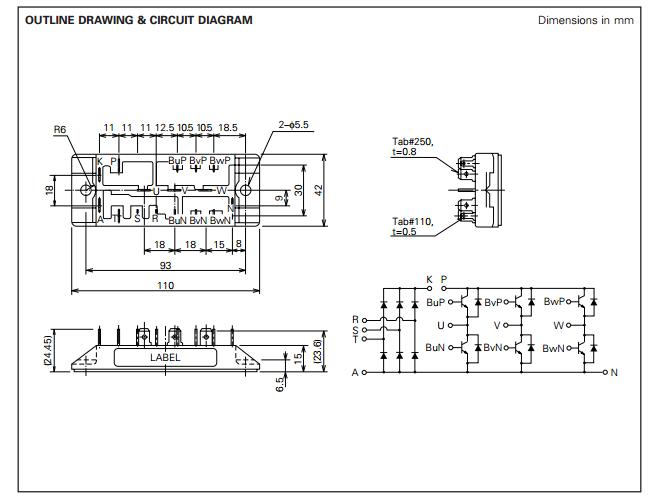

QM20KD-HB dimension figure
