Product Summary

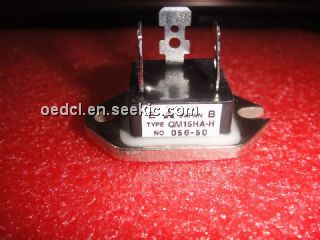

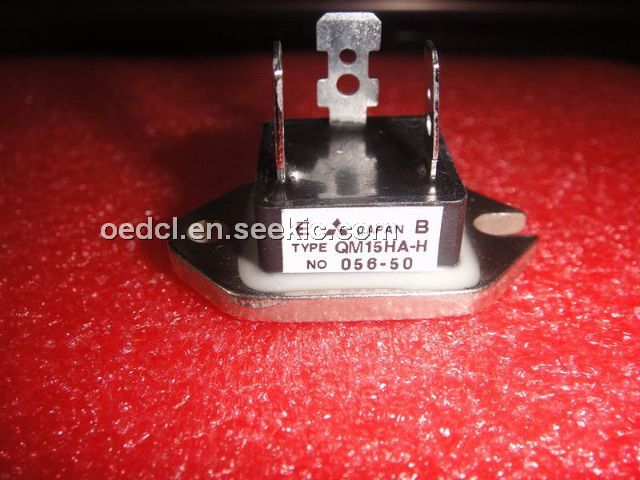

The QM15HA-H is a medium power switching use insulated type. The applications of the QM15HA-H include Inverters, Servo drives, DC motor controllers, NC equipment, Welders.
Parametrics
QM15HA-H absolute maximum ratings: (1)Collector-emitter voltage: 600V; (2)Collector-base voltage: 600V; (3)Emitter-base voltage: 7V; (4)Collector current: 15A; (5)Collector reverse current: 15A; (6)Collector dissipation: 100W; (7)Base current: 0.9A; (8)Surge collector reverse current: 150A; (9)Junction temperature: -40 to +150℃; (10)Storage temperature: -40 to +125℃; (11)Isolation voltage: 2500V.
Features
QM15HA-H features: (1)IC Collector current: 15A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM15HA-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
