Product Summary

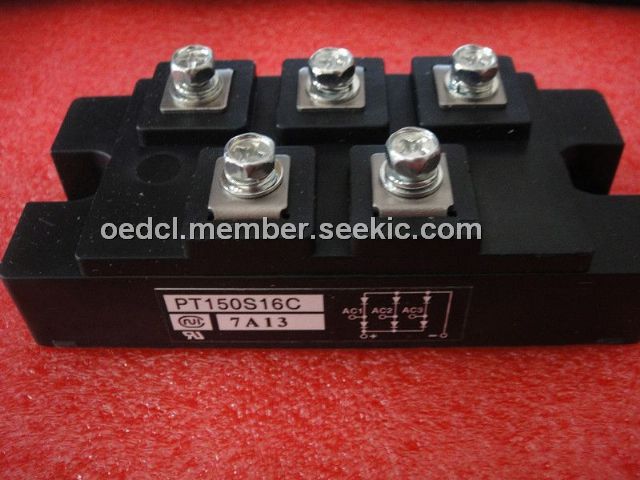

The PT150S16C is a diode module. The application of the PT150S16C includes Rectified for General Use.

Parametrics

PT150S16C absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 1600V; (2)Non Repetitive Peak Reverse Voltage: 1750V; (3)Average Rectified Output Current: 150A; (4)Average Rectified Output Current: 1100A; (5)Operating Junction Temperature Range Tjw: -40 to +125℃; (6)Storage Temperature Range Tstg: -40 to +125℃; (7)Isoration Voltage Viso Base Plate to Terminals, AC1min: 2500V.

Features

PT150S16C features: (1)Isolated Base; (2)3 Phase Bridge Circuit; (3)Designed Power Circuit Board; (4)High Surge Capability; (5)UL Recognized, File No. E187184.

Diagrams

PT150S16C dimension
