Product Summary
The PS21765 is an intelligent power module that integrate power device, driver, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motor. Use of 5th generation IGBTs, DIP packaging, and application specific HVICs allow the designer to reduce inverter size and overall design time.Applications are (1)Refrigerators; (2)Air conditioners; (3)Small servo motors; (4)Small motor control.
Parametrics
PS21765 absolute maximum ratings: (1)Power device junction temperature Tj: -20 to 150 °C; (2)Storage temperature Tstg: -40 to 125 °C; (3)Case operating temperature (Note 1)TC: -20 to 100 °C; (4)Mounting torque, M3 mounting screws: 8.7 in-lb; (5)Module weight (Typical): 20 Grams; (6)Heatsink flatness (Note 2): -50 to 100 μm; (7)Self-protection supply voltage limit (short circuit protection capability)VCC(prot.): 400 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz sinusoidal, connection pins to heatsink plate VISO: 2500 Volts.
Features
PS21765 features: (1)Compact packages; (2)Single power supply; (3)Integrated HVICs; (4)Direct connection to CPU; (5)Reduced Rth.

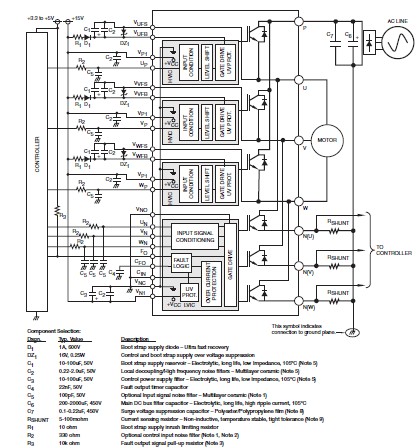

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

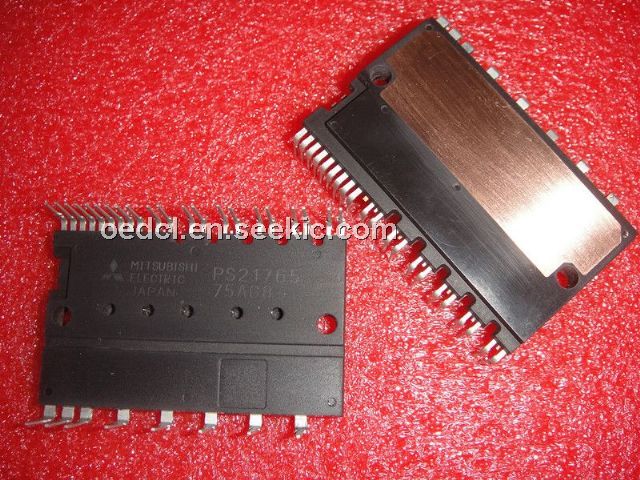

 PS21765 |
|
MOD IPM 600V 20A MINI DIP |
Data Sheet |
|
|
||||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||||
 |
PS21204 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
PS21205 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
PS21212 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
PS21244-E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
PS21244-EP |
|
MOD IPM 600V 15A DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
PS21245-E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
