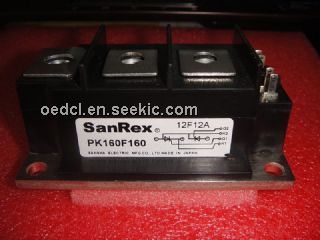

Product Summary
The PK160F160 is a power thyristor/diode module. The PK160F160 is designed for various rectifier circuits and power controls. For your circuit application. Following internal connections and wide voltage ratings up to 1,600V are available. Two elements in a package and electrically isolated mounting base make your mechanical design easy. Applications are (1)Various rectifiers; (2)AC/DC motor drives; (3)Heater controls; (4)Light dimmers; (5)Static switches.
Parametrics
PK160F160 absolute maximum ratings: (1)Repetitive peak reverse voltage: 1600 V; (2)Non-repetitive peak reverse voltage: 1700 V; (3)Repetitive peak off-state voltage: 1600 V; (4)Average on-state current: 160 A; (5)R.M.S. on-state current: 250 A; (6)Surge on-state current: 5000/5500 A; (7)Peak gate power dissipation: 10 W; (8)Average gate power dissipation: 3 W; (9)Peak gate current: 3 A; (10)Peak gate voltage (forward): 10 V; (11)Peak gate voltage (reverse): 5 V; (12)Critical rate of rise of on-state current: 200 A/μs; (13)Isolation breakdown voltage (R.M.S.): 2500 V; (14)Operating junction temperature: -40 to +125 ℃; (15)Storage temperature: -40 to +125 ℃; (16)Mass: 510 g.
Features
PK160F160 features: (1)IT(AV)160A, IT(RMS)250A, ITSM 5500A; (2)di/dt 200 A/μs; (3)dv/dt 500V/μs.

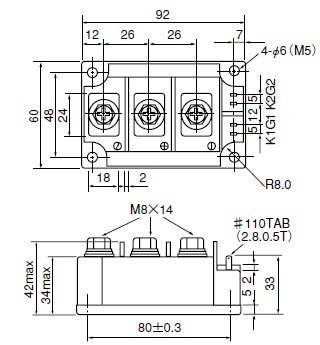

Diagrams
