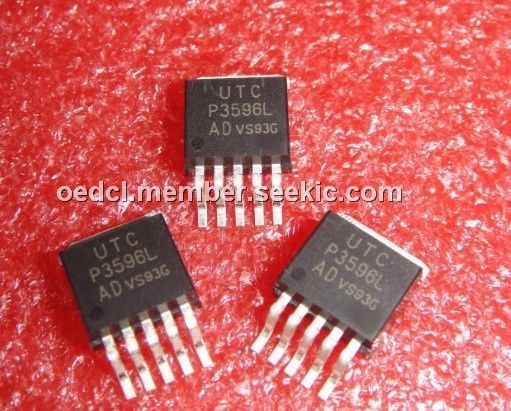

Product Summary

The P3596L is a step-down switching regulator able to provide 3A output current. The available output voltages of the P3596L are 1.5V, 2.5V, 3.3V, 5V, 12V, and an adjustable output version.

Parametrics

P3596L absolute maximum ratings: (1)Maximum Supply Voltage VCC: 40 V; (2)Operating Voltage VOPR: 4.5 ~ 35 V; (3)ON/OFF Pin Input Voltage VON/OFF: -0.3 ~ +20 V; (4)Feedback Pin Voltage VFB: -0.3 ~ +20 V; (5)Output Voltage to Ground (Steady State)VOUT: -1 V; (6)Power Dissipation PD: Internally limited mW; (7)Maximum Junction Temperature TJ: +150℃; (8)Temperature Range TOPR: -40 ~ +125℃; (9)Storage Temperature Range TSTG: -65 ~ +150℃.

Features

P3596L features: (1)Output load current: 3A; (2)Adjustable version output voltage range, 1.23V ~ 32V±4%; (3)Operating voltage can be up to 35V; (4)Low power standby mode; (5)High efficiency; (6)Internal current and thermal limit.

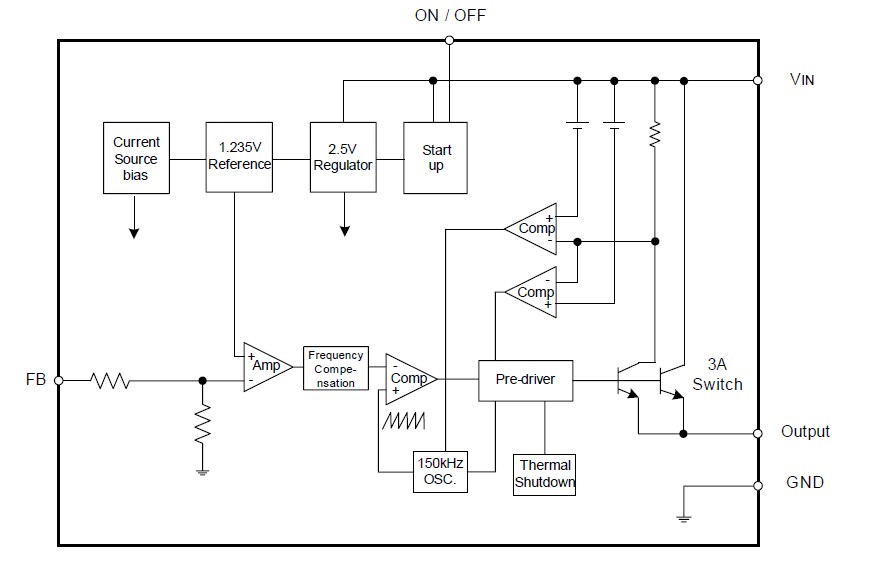

Diagrams

P3596L pin connection

P3596
P3596
Other

Data Sheet
Negotiable
