Product Summary

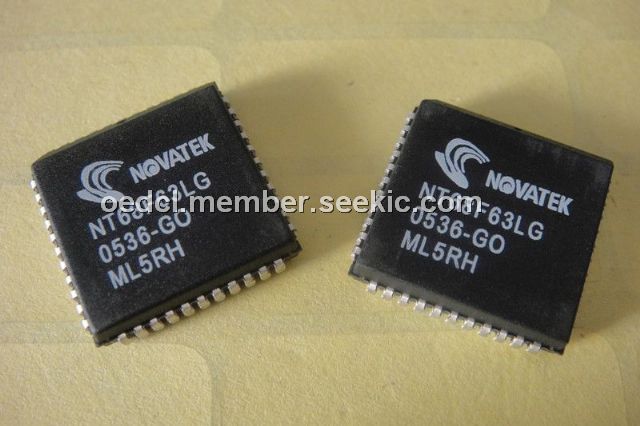

The NT68F63LG is a new generation of monitor μC for autosync and digital control applications. Particularly, the NT68F63LG supports various functions to allow users to easily develop USB monitors. The NT68F63LG contains the 6502 8-bit CPU core, 512 bytes of RAM for use as working RAM and as stack area, 32K bytes of Flash memory, 13-channels of 8-bit PWM D/A converters, 4-channel A/D converters for detection of keys which can save I/O pins, one 8-bit pre-loadable base timer, an internal Hsync and Vsync signals processor and a watch-dog timer, which prevents the system from abnormal operation and two IIC bus interfaces.
Parametrics
NT68F63LG absolute maximum ratings: (1)Operating voltage range: 4.5V to 5.5V; (2)IDD Operating Current: 20 mA; (3)VIH1 Input High Voltage: 2 V; (4)VIH2 Input High Voltage: 3 V ; (5)VIL1 Input Low Voltage: 0.8 V; (6)ROL Pull Down Resistor ( RESET): 50 KΩ; (7)ROH1 Pull up Resistor (INTE0, INTE1): 33 KΩ; (8)ROH2 Pull up Resistor (PORT0, PORT1, & PORT4): 33 KΩ.
Features
NT68F63LG features: (1)Operating voltage range: 4.5V to 5.5V; (2)CMOS technology for low power consumption; (3)6502 8-bit CMOS CPU core; (4)8 MHz operation frequency; (5)32K bytes of flash memory for Multi -Times Program; (6)512 bytes of RAM; (7)2Kbytes Masked BootROM for ISP.; (8)One 8-bit base timer; (9)13 channels of 8-bit PWM outputs with 5V open drain; (10)4 channel A/D converters with 6-bit resolution; (11)25 bi-directional I/O port pins (8 dedicated I/O pins); (12)Hsync/Vsync signals processor for separate & composite signals, including hardware sync signals polarity detection and freq. counters with 2 sets of Hsync counting intervals; (13)Hsync/Vsync polarity controlled output, 5 selectable free run output signals and self-test patterns, automute function, half freq. I/O function; (14)Two built-in IIC bus interfaces support VESA DDC1/2B+.

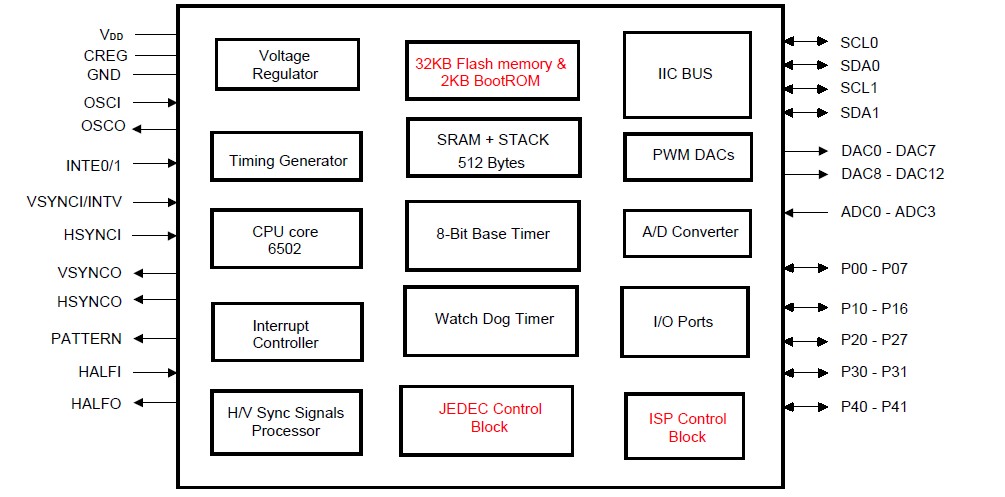

Diagrams
 |
