Product Summary

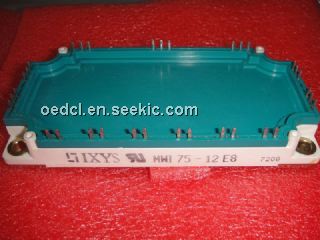

The MWI75-12E8 is an IGBT Module. The applications of the MWI75-12E8 include AC drives and power supplies with power factor correction.
Parametrics
MWI75-12E8 absolute maximum ratings: (1)VCES : 1200 V; (2)VGES : ± 20 V; (3)IC25 : 130 A; (4)IC80 : 90 A; (5)tSC : 10 μs; (6)Ptot : 500 W.
Features
MWI75-12E8 features: (1)low saturation voltage; (2)positive temperature coefficient; (3)fast switching; (4)short tail current for optimized performance also in resonant circuits; (5)fast reverse recovery; (6)low operating forward voltage; (7)low leakage current; (8)solderable pins for PCB mounting; (9)isolated copper base plate.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MWI75-12E8 |
Ixys |
Discrete Semiconductor Modules 75 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MWI75-06A7 |
Ixys |
Discrete Semiconductor Modules 75 Amps 600V |
Data Sheet |
Negotiable |
|
||||
|
MWI75-06A7T |
Ixys |
IGBT Modules 75 Amps 600V |
Data Sheet |
Negotiable |
|
||||
|
MWI75-12A5 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MWI75-12A8 |
Ixys |
Discrete Semiconductor Modules IGBT MOD 1200V, 75A |
Data Sheet |
Negotiable |
|
||||
|
MWI75-12A8T |
Ixys |
Discrete Semiconductor Modules 75 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
MWI75-12E8 |
Ixys |
Discrete Semiconductor Modules 75 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
