Product Summary
The MSM7732-01LAZ060 is a single-channel full duplex CODEC CMOS IC which performs mutual transcoding between the analog voice band signals and 64 kbps PCM serial data. The MSM7732-01LAZ060 performs such functions as DTMF tone and several types of tone generation, transmit/receive data mute and gain control, and side tone path.
Parametrics
MSM7732-01LAZ060 absolute maximum ratings: (1)Power Supply Voltage: -0.3 to +5.0 V; (2)Analog Input Voltage: -0.3 to VDD+0.3 V; (3)Digital Input Voltage: -0.3 to VDD+0.3 V; (4)Storage Temperature: -55 to +150℃.
Features
MSM7732-01LAZ060 features: (1)Single 3 V power supply operation VDD: 2.4 V to 3.3 V; (2)PCM interface data format : μ-law/A-law/linear selectable; (3)PCM interface timing : long frame synchronous timing/short frame synchronous timing; (4)Full-duplex single channel operation; (5)Serial PCM transmission data rate: 64 kbps to 2048 kbps; (6)Low power consumption; (7)Master clock frequency: 2.048 MHz; (8)Analog output stage; (9)Transmit/receive mute, transmit/receive programmable gain control; (10)Side tone path with programmable attenuation (8-step adjustment level); (11)Built-in DTMF tone generator; (12)Built-in various ringing/function tone generator; (13)Built-in various ring back tone generator; (14)Serial MCU interface control: 3 bit; (15)Built-in transmit voice signal detector; (16)Built-in op amps and analog switches for various analog interface.

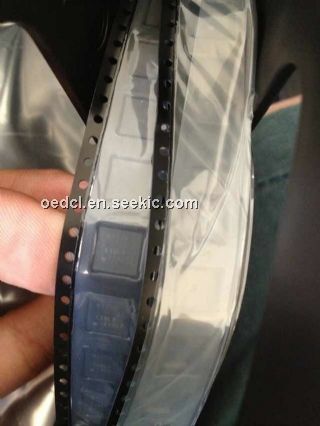

Diagrams
