Product Summary

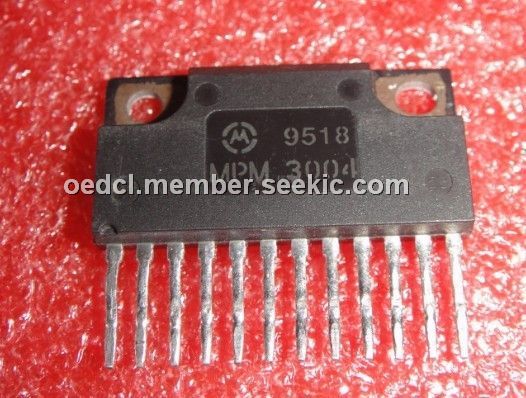

The MPM3004 is a three-phase bridge power circuit packaged in the new power SIP called the ICePAK package. The MPM3004 consists of three P-Channel power MOSFETs and the lower legs of the bridge consist of three N-Channel power MOSFETs. The MPM3004 is ideal for applications such as disk drives, servo motor drives and stepper motor controls.

Parametrics

MPM3004 absolute maximum ratings: (1)Drain-to-Source Voltage (All Types)VdSS: 60V; (2)Drain-to-Gate Voltage (RqS = 1 0 (All Types)VDGR: 60V; (3)Gate-to-Source Voltage Continuous (All Types)vgs: ±20V; (4)- Non-Repetitive: ±40V; (5)Drain Current Continuous (Any 2 Devices): 10A; (6)- Pulsed Idm: 25A; (7)RMS Isolation Voltage (Any Pin to Case)vISO: 2000V; (8)Operating and Storage Temperature Range TJ> Tstg: -40 to 150℃.

Features

MPM3004 features: (1)P and N-Channei Power MOSFETs for Ease of Drive; (2)Isolated Package with 2 kV Isolation Voltage Rating; (3)High Peak Current Handling Capability - 25 Amperes; (4)Avalanche Energy Capability is Specified; (5)Compact Space Saving Package; (6)Excellent Thermal Capability; (7)Interlace Directly with MC33033 and MC33035 Brushless dc Motor Control ICs.


Diagrams

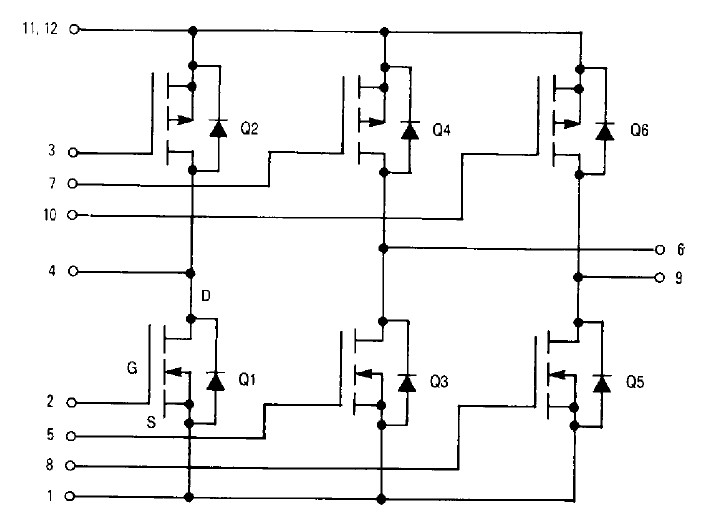

MPM3004 pin connection
