Product Summary
The MPC564MZP56B is a risc MCU including peripheral pin multiplexing with flash and code compression options.
Parametrics
MPC564MZP56B absolute maximum ratings: (1)Temperature Range: -40 to 125℃; (2)Maximum Frequency: 56 MHz; (3)power supply: 4.75- to 5.25V; (4)Typical conversion time: 5 μs.
Features
MPC564MZP56B features: (1)High performance core: Single issue integer core , Compatible with PowerPC instruction set architecture , Precise exception model , Floating point , Extensive system development support; (2)On-chip watchpoints and breakpoints; (3)Program flow tracking; (4)Background debug mode (BDM); (5)IEEE-ISTO Nexus 5001-1999 Class 3 Debug Interface; (6)MPC500 system interface (USIU, BBC, L2U); (7)Fully static design; (8)Four major power saving modes: On, doze, sleep, deep-sleep and power-down; (9)32-Kbyte static RAM (CALRAM); (10)512-Kbyte flash (UC3F)on MPC563/MPC564; (11)General-purpose I/O support: On address (24)and data (32)pins , 16 GPIO in MIOS14 , Many peripheral pins can be used as GPIO when not used as primary functions , 2.6-V outputs on external bus pins , PPM (peripheral pin multiplexing with parallel-to-serial driver)module , Available in package or die; (12)Plastic ball grid array (PBGA)packaging.

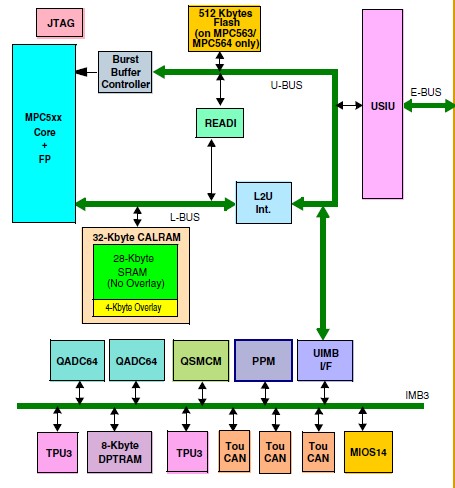

Diagrams
 |
