MJW16018

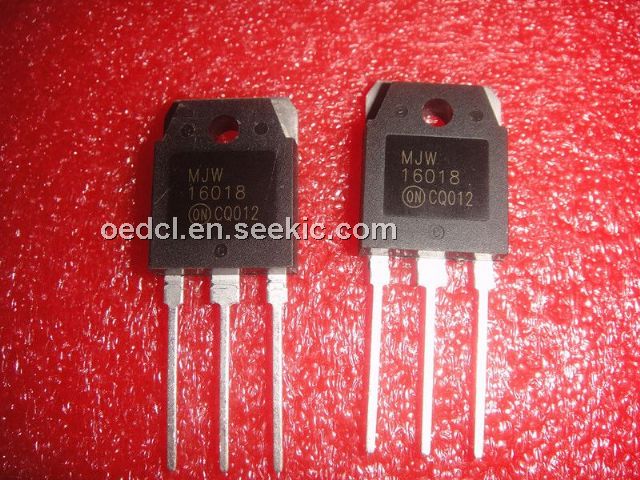

MJW16018, NPN silicon power transistor, 800 Vdc, 10 Adc, 125 Watts, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.80 / Piece

PartNumber:: MJW16018

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 06+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:MJW16018
US $0.80 - 1.00
Quantity:

piece

Product Summary

The MJW16018 is an NPN silicon power transistor. The MJW16018 is designed for high–voltage, high–speed, power switching in inductive circuits where fall time is critical. The MJW16018 particularly suited for line–operated switchmode applications. Applications are (1)Switching regulators; (2)Inverters; (3)Solenoids; (4)Relay drivers; (5)Motor controls; (6)Deflection circuits.

Parametrics

MJW16018 absolute maximum ratings: (1)Collector-emitter voltage VCEO(sus): 800 Vdc; (2)Collector-emitter voltage VCEV: 1500 Vdc; (3)Emitter-base voltage: 6 Vdc; (4)Collector current continuous IC: 10 Adc; Peak(1) ICM: 15 Adc; (5)Base current continuous IB: 8 Adc; Peak(1) IBM: 12 Adc; (6)Total power dissipation @TC = 25°C: 125 Watts; @TC = 100°C: 50 Watts; Derate above Tq = 25 ℃: 1 W/℃; (7)Operating and storage junction temperature range: -55 to 150°C.

Features

MJW16018 features: (1)Collector–emitter voltage — VCEV = 1500 Vdc; (2)Fast turn–off times: 80 ns inductive fall time — 100℃(Typ); 110 ns inductive crossover time — 100℃ (Typ); 4.5 μs inductive storage time — 100℃ (Typ); (3)100℃ performance specified for: reverse–Biased SOA with inductive load; Switching times with inductive loads; Saturation voltages; leakage currents.
