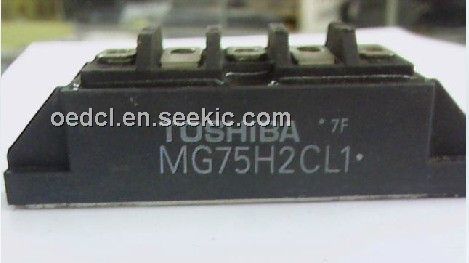

Product Summary
The MG75H2CL1 is a TOSHIBA GTR Module. It is a High Power Switching Application.
Parametrics
MG75H2CL1 absolute maximum ratings: (1)Collector-Base voltage VCBO: 600V; (2)Emitter-Base voltage VEBO: 6V; (3)Collector Current IC: 75A; (4)Collector power dissipation (Tc=25℃) PC: 350W; (5)Junction temperature Tj: 150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (7)Isolation Voltage VIsol: 2500V(AC 1min); (8)Screw Torque(Terminal/Mounting): 20/30 Kg.cm.
Features
MG75H2CL1 features: (1)The collector is isolated from case; (2)2 Power Transistor and 2 Free Weeling Diodes are Built-in to 1 package; (3)High DC Current Gain: hFE = 80 (Min.) (IC=75A); (4)Low Satulation Voltage: VCE (sat)=2V(Max.) (IC=75A); (5)High Speed: tf=4μs(Max.) (IC=75A).

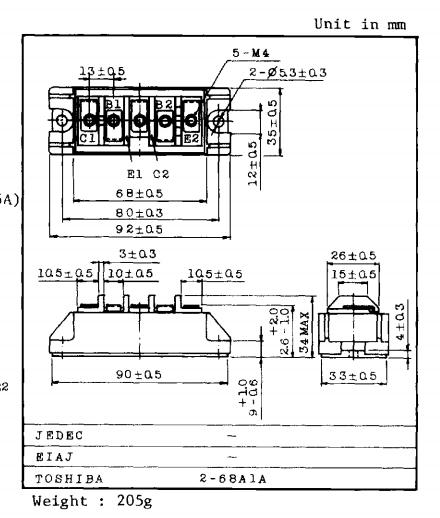

Diagrams
