Product Summary

The mcp4922 is a 12-Bit DAC with SPI Interface. The mcp4922 provides high accuracy and low noise performance for industrial applications where calibration or compensation of signals (such as temperature, pressure and humidity) are required. Applications of the mcp4922 include: Set Point or Offset Trimming, Sensor Calibration, Digitally-Controlled Multiplier/Divider, Portable Instrumentation (Battery-Powered) and Motor Feedback Loop Control.

Parametrics

mcp4922 absolute maximum ratings: (1) VDD: 6.5V; (2) All inputs and outputs w.r.t: AVss -0.3 to VDD +0.3V; (3) Current at Input Pins: ±2mA; (4) Current at Supply Pins: ±50mA; (5) Current at Output Pins: ±25mA; (6) Storage temperature: -65 to +150°C; (7) Ambient temp. with power applied: -55 to +125°C; (8) ESD protection on all pins: ≥ 4 kV (HBM), ≥ 400V (MM) ; (9) Maximum Junction Temperature (TJ) : +150°C.

Features

mcp4922 features: (1) 12-Bit Resolution; (2) ±0.2 LSB DNL (typ) ; (3) ±2 LSB INL (typ) ; (4) Single or Dual Channel;(5) Rail-to-Rail Output; (6) SPI Interface with 20 MHz Clock Support; (7) Simultaneous Latching of the Dual DACs w/LDAC; (8) Fast Settling Time of 4.5 μs; (9) Selectable Unity or 2x Gain Output; (10) 450 kHz Multiplier Mode; (11) External VREF Input; (12) 2.7V to 5.5V Single-Supply Operation; (13) Extended Temperature Range: -40 to +125°C.

Diagrams

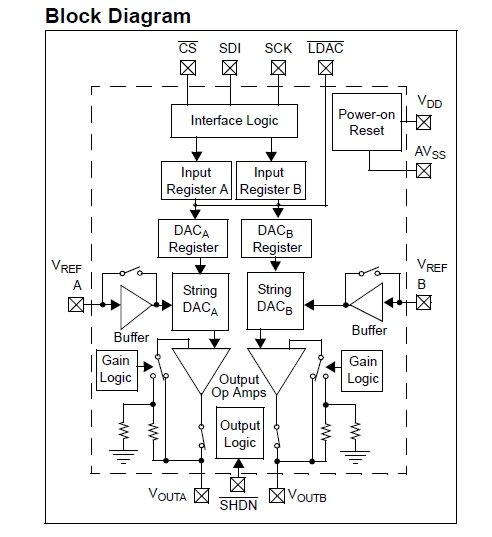

mcp4922 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

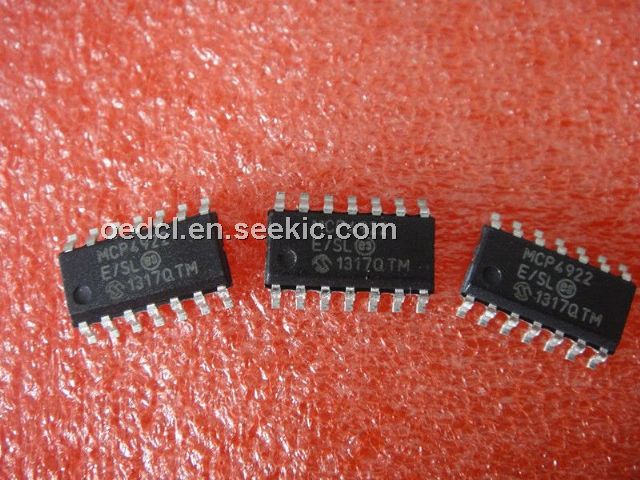

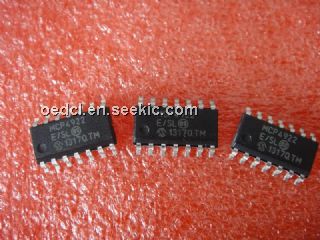

MCP4922
MCP4922
Other

Data Sheet
Negotiable
MCP4922-E/P
MCP4922-E/P
Microchip Technology
DAC (D/A Converters) Dual 12-bit SPI int
Data Sheet
0-1: $1.66
1-10: $1.57
10-25: $1.31
25-100: $1.19
MCP4922-E/SL
MCP4922-E/SL
Microchip Technology
DAC (D/A Converters) Dual 12-bit SPI int
Data Sheet
0-1: $1.66
1-10: $1.57
10-25: $1.31
25-100: $1.19
MCP4922-E/ST
MCP4922-E/ST
Microchip Technology
DAC (D/A Converters) Dual 12-bit SPI int
Data Sheet
0-1: $1.66
1-10: $1.57
10-25: $1.31
25-100: $1.19
MCP4922T-E/SL
MCP4922T-E/SL
Microchip Technology
DAC (D/A Converters) Dual 12-bit SPI int
Data Sheet
0-1810: $1.19
1810-2600: $1.19
MCP4922T-E/ST
MCP4922T-E/ST
Microchip Technology
DAC (D/A Converters) Dual 12-bit SPI int
Data Sheet
0-1740: $1.19
1740-2500: $1.19
