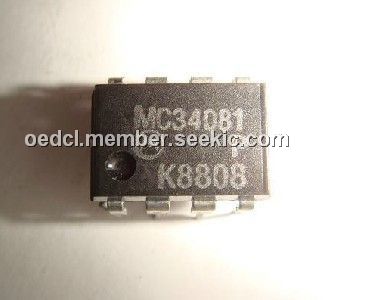

MC34081P

MC34081P, high speed JFET input monolithic operational amplifier, DIP, +44V, 90dB, 35Ω

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: MC34081P

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-08

From Other Seller

Part Number:MC34081P
US $0.80 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC34081P is a high speed JFET input monolithic operational amplifier. Innovative design concepts along with JFET technology provide wide gain bandwidth product and high slew rate. Well–matched JFET input devices and advanced trim techniques ensure low input offset errors and bias currents. The all NPN output stage features large output voltage swing, no deadband crossover distortion, high capacitive drive capability, excellent phase and gain margins, low open loop output impedance, and symmetrical source/sink AC frequency response. The MC34081P is available in fully compensated or decompensated (AVCL32) and is specified over a commercial temperature range. The MC34081P is pin compatible with existing Industry standard operational amplifiers, and allow the designer to easily upgrade the performance of existing designs.

Parametrics

MC34081P absolute maximum ratings: (1)Supply Voltage (from VCC to VEE), VS: +44 V; (2)Output Short Circuit Duration, tSC: Indefinite sec; (3)Operating Ambient Temperature Range, TA: 0 to +70℃; (4)Operating Junction Temperature, TJ: +125℃; (5)Storage Temperature Range, Tstg: – 65 to +165℃.

Features

MC34081P features: (1)Wide Gain Bandwidth: 8.0 MHz for Fully Compensated Devices; (2)Wide Gain Bandwidth: 16 MHz for Decompensated Devices; (3)High Slew Rate: 25 V/ms for Fully Compensated Devices; (4)High Slew Rate: 50 V/ms for Decompensated Devices; (5)High Input Impedance: 1012W; (6)Input Offset Voltage: 0.5 mV Maximum (Single Amplifier); (7)Large Output Voltage Swing: -14.7 V to +14 V for; (8)Large Output Voltage Swing: VCC/VEE = ±15 V; (9)Low Open Loop Output Impedance: 30 W @ 1.0 MHz; (10)Low THD Distortion: 0.01%; (11)Excellent Phase/Gain Margins: 55?7.6 dB for Fully Compensated; (12)Devices.
