Product Summary

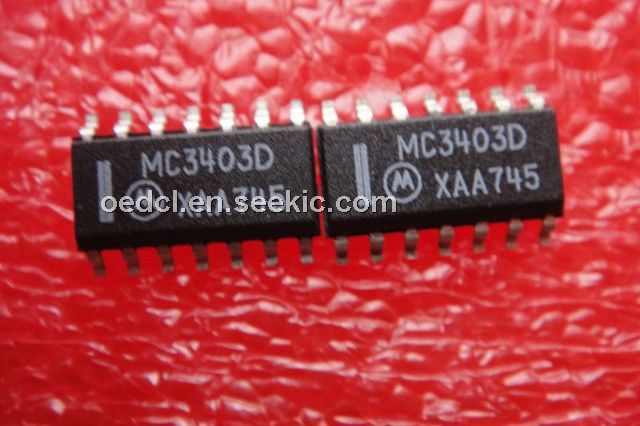

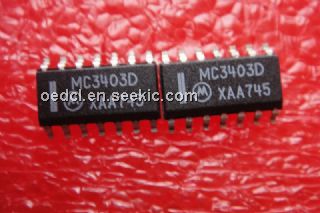

The MC3403D is a monolithic Quad operational amplifier consisting of four independent amplifiers. The device has high gain, internally frequency, compensated operational amplifiers designed to operate from a single power supply or dual power supplies over a wide range of voltages. The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications.
Parametrics
MC3403D absolute maximum ratings: (1)Supply Voltage: ±18 Vor+36 V; (2)Differential Input Voltage: 36 V; (3)Input Voltage: ±18 V; (4)Output Short Circuit Duration: Continuous ; (5)Power Dissipation: 670 mW; (6)Operating Temperature: 0 ~+ 70℃; (7)Storage Temperature: -65~+ 150 ℃.
Features
MC3403D features: (1)Output voltage can swing to GND or negative supply; (2)Wide power supply range; (3)Single supply of 3.0V to 36V; (4)Dual supply of ±1.5V to ±18V; (5)Electrical characteristics similar to the KA741; (6)Class AB output stage for minimal crossover distortion; (7)Short circuit protected output.

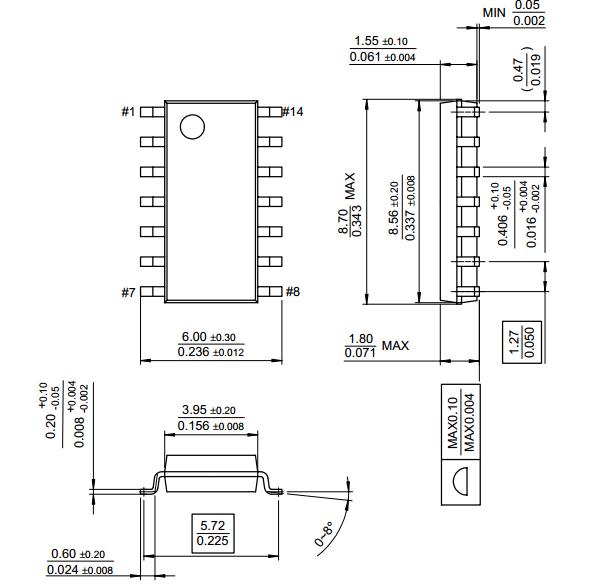

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC3403D |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low Power |
Data Sheet |
|
|
||||||||||||
|
MC3403DE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Power |
Data Sheet |
|
|
||||||||||||
|
MC3403DG |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Quad 10mV VIO Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
MC3403DG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Pwr Gen- Purp Op Amp |
Data Sheet |
|
|
||||||||||||
|
MC3403DR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low Power GP |
Data Sheet |
|
|
||||||||||||
|
MC3403DR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Quad 10mV VIO |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC3403DR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Quad 10mV VIO Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
MC3403DRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Power |
Data Sheet |
|
|
||||||||||||
