Product Summary
The MC14024BCP is a 7–stage ripple counter with short propagation delays and high maximum clock rates. The Reset input has standard noise immunity, however the Clock input has increased noise immunity due to Hysteresis. The output of each counter stage is buffered.
Parametrics
MC14024BCP absolute maximum ratings: (1)VDD, DC Supply Voltage Range: –0.5 to +18.0 V; (2)Vin, Vout, Input or Output Voltage Range (DC or Transient): –0.5 to VDD + 0.5 V; (3)Iin, Iout, Input or Output Current (DC or Transient) per Pin: ±10 mA; (4)PD, Power Dissipation, per Package (Note NO TAG): 500 mW; (5)TA, Ambient Temperature Range: –55 to +125℃; (6)Tstg, Storage Temperature Range: –65 to +150℃; (7)TL, Lead Temperature (8–Second Soldering): 260℃.
Features
MC14024BCP features: (1)Diode Protection on All Inputs; (2)Output Transitions Occur on the Falling Edge of the Clock Pulse; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Capable of Driving Two Low–power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; (5)Pin–for–Pin Replacement for CD4024B.

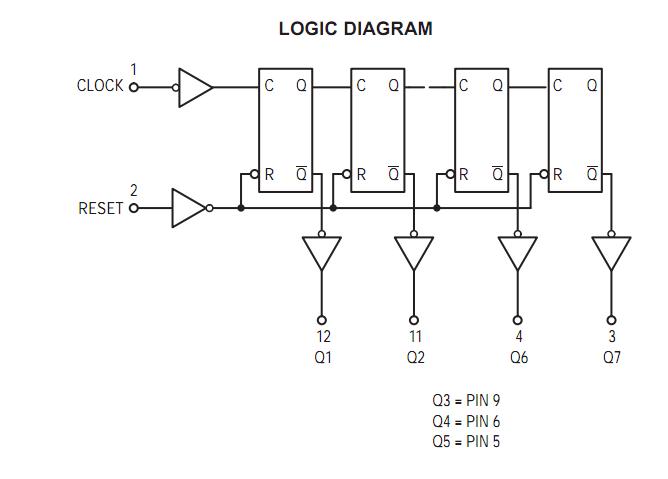

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MC14024BCP |
ON Semiconductor |
Counter Shift Registers 3-18V 7-Segment |
Data Sheet |
Negotiable |
|
|||||||||||||
MC14024BCPG |
ON Semiconductor |
Counter Shift Registers 3-18V 7-Segment Ripple |
Data Sheet |
|
|
