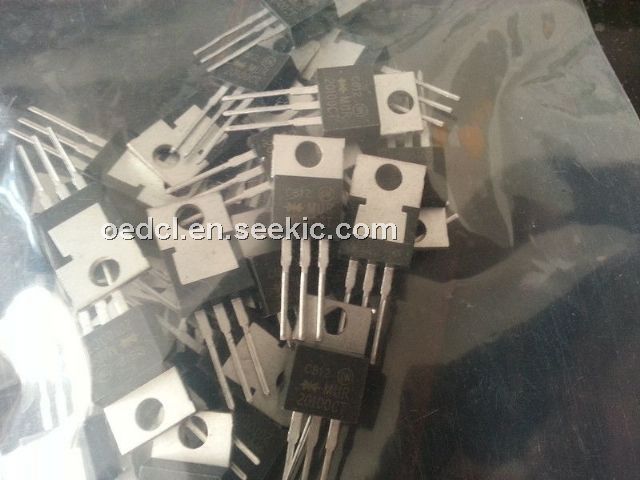

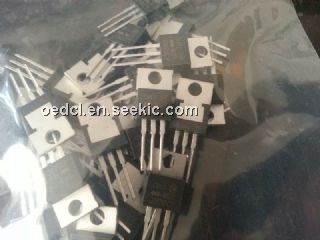

MBRF20100CT

MBRF20100CT, switchmode schottky, 20 Amps, 10000 V, 60 Hz, to

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.50 / Piece

PartNumber:: MBRF20100CT

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:MBRF20100CT
US $0.50 - 1.00
Quantity:

piece

Product Summary

The MBRF20100CT is a switchmode schottky power rectifirer. The switchmode power rectifier MBRF20100CT employs the Schottky Barrier principle in a large area metal–to–silicon power diode. State–of–the–art geometry of the MBRF20100CT features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use as rectifiers in very low–voltage, high–frequency switching power supplies, free wheeling diodes and polarity protection diodes.

Parametrics

MBRF20100CT absolute maximum ratings: (1)Maximum Thermal Resistance-Junction to Case RqJC: 3.5 ℃/W; (2)Lead Temperature for Soldering Purposes: 1/8, from Case for 5 Seconds TL: 260 ℃; (3)Average Rectified Forward Current TC = 133℃ IF(AV): 10Amps; (4)Peak Repetitive Forward Current(Rated VR, Square Wave, 20kHz), TC = 133℃. IFRM: 20 Amps; (5)Non–repetitive Peak Surge Current(Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM: 150 Amps; (6)Peak Repetitive Reverse Surge Current (2.0 ms, 1.0 kHz) IRRM: 0.5 Amp; (7)Operating Junction and Storage Temperature TJ, Tstg: – 65 to +150 ℃; (8)Voltage Rate of Change (Rated VR) dv/dt: 10000 V/ms.

Features

MBRF20100CT features: (1)Highly Stable Oxide Passivated Junction; (2)Very Low Forward Voltage Drop; (3)Matched Dual Die Construction; (4)High Junction Temperature Capability; (5)High dv/dt Capability; (6)Excellent Ability to Withstand Reverse Avalanche Energy Transients; (7)Guardring for Stress Protection; (8)Epoxy Meets UL94, VO at 1/8,; (9)Electrically Isolated. No Isolation Hardware Required;
