Product Summary

The MAX4614CUD is a negative voltage regulator. The MAX4614CUD has four normally open (NO) switches, and the MAX4615 has four normally closed (NC) switches. The MAX4614CUD has two NO switches and two NC switches. These CMOS switches operate from a single +2V to +5.5V supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a single +5V supply. The applications of the MAX4614CUD include Battery-Operated Equipment, Audio/Video Signal Routing, Low-Voltage Data-Acquisition Systems, Sample-and-Hold Circuits and Communication Circuits.

Parametrics

MAX4614CUD absolute maximum ratings: (1)V+, IN_: -0.3V to +6V; (2)COM_, NO_, NC_ (Note 1): -0.3V to (V+ + 0.03V); (3)Continuous Current (any terminal): ±75mA; (4)Peak Current (NO_, NC_, COM_) (pulsed at 1ms, 10% duty cycle): ±200mA; (5)Continuous Power Dissipation (TA = +70℃): 500mW; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX4614CUD features: (1)Fast Switching Times 12ns tON, 10ns tOFF; (2)Pin Compatible with Industry-Standard 74HC4066/MAX4610; (3)Guaranteed On-Resistance 10Ωmax (+5V supply); (4)Guaranteed Match Between Channels (1Ωmax); (5)Guaranteed Flatness Over Signal Range (1Ωmax); (6)<6nA Off-Leakage Current Over Temperature(TA = +85℃); (7)Rail-to-Rail Signal Handling; (8)TTL/CMOS-Logic Compatible.

Diagrams

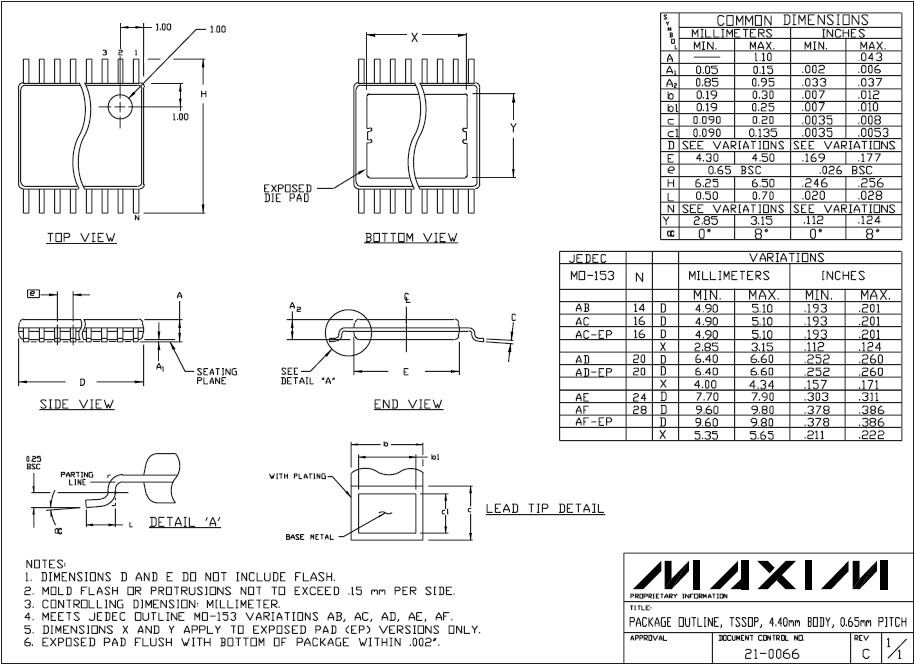

MAX4614CUD dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

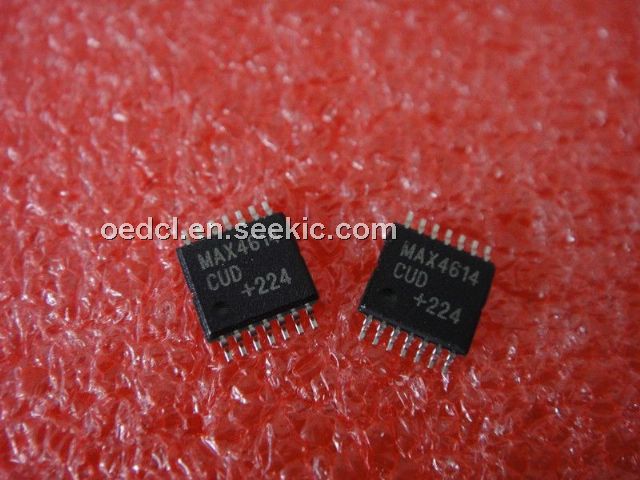

MAX4614CUD
MAX4614CUD
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable
MAX4614CUD+
MAX4614CUD+
Maxim Integrated Products
Analog Switch ICs Quad SPST Analog Switch
Data Sheet
0-1: $1.76
1-25: $1.24
25-50: $0.89
50-100: $0.88
MAX4614CUD+T
MAX4614CUD+T
Maxim Integrated Products
Analog Switch ICs Quad SPST Analog Switch
Data Sheet
0-2070: $0.80
2070-2500: $0.80
MAX4614CUD-T
MAX4614CUD-T
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable
