Product Summary

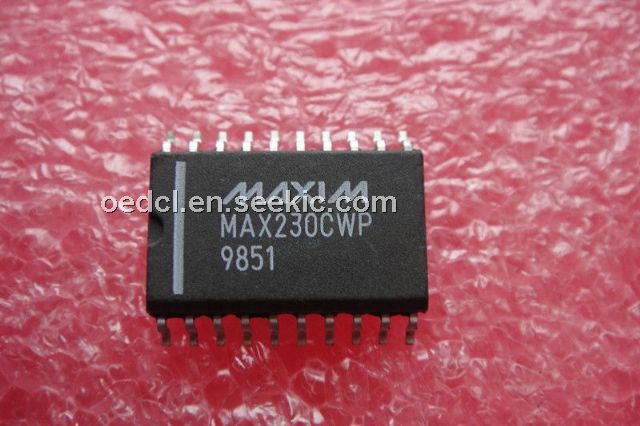

The MAX230CWP is a Multichannel RS-232 Driver/Receiver. The applications of the MAX230CWP include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems and Multidrop RS-232 Networks.
Parametrics
MAX230CWP absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+ (Note 1): (VCC - 0.3V) to +14V; (3)V- (Note 1): +0.3V to +14V; (4)Input Voltages TIN: -0.3V to (VCC - 0.3V); (5)RIN (Except MAX220): ±30V; (6)TOUT (Except MAX220) (Note 2): ±15V; (7)Output Voltages TOUT: ±15V; (8)ROUT: -0.3V to (VCC + 0.3V); (9)Driver/Receiver Output Short Circuited to GND: Continuous; (10)Continuous Power Dissipation (TA = +70℃): 842mW; (11)Operating Temperature Ranges: 0℃ to +70℃; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10s) (Note 3): +300℃.
Features
MAX230CWP features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/ MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP. Package); (2)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX230CWP |
Maxim Integrated Products |
RS-232 Interface IC Integrated Circuits (ICs) |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX230CWP+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX230CWP-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX230CWP+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
