Product Summary
The M82C51A-2 is an USART (Universal Synchronous Asynchronous Receiver Transmitter) for serial data communication. As a peripheral device of a microcomputer system, the MSM82C51A-2 receives parallel data from the CPU and transmits serial data after conversion. This device M82C51A-2 also receives serial data from the outside and transmits parallel data to the CPU after conversion. The MSM82C51A-2 configures a fully static circuit using silicon gate CMOS technology. Therefore, the M82C51A-2 operates on extremely low power at 100 mA (max) of standby current by suspending all operations.
Parametrics
M82C51A-2 absolute maximum ratings: (1)Power Supply Voltage, VCC: –0.5 to +7 V; (2)Input Voltage, VIN: –0.5 to VCC +0.5 V; (3)Output Voltage, VOUT: –0.5 to VCC +0.5 V; (4)Storage Temperature, TSTG: –55 to +150℃; (5)Power Dissipation, PD: 0.7 W.
Features
M82C51A-2 features: (1)Wide power supply voltage range from 3 V to 6 V; (2)Wide temperature range from –40 to 85℃; (3)Synchronous communication upto 64 Kbaud; (4)Asynchronous communication upto 38.4 Kbaud; (5)Transmitting/receiving operations under double buffered configuration; (6)Error detection (parity, overrun and framing).

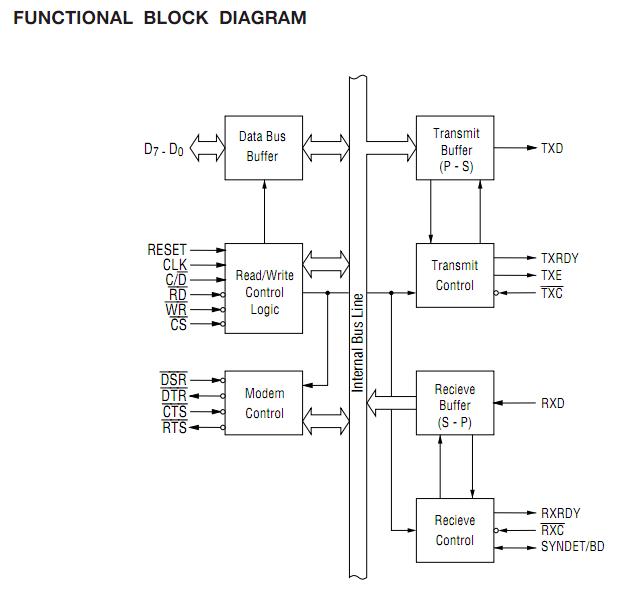

Diagrams
 |
