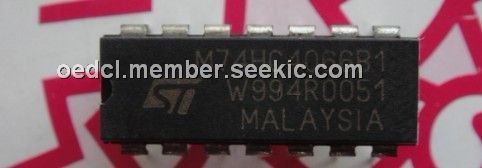

M74HC4066B1

CMOS quad bilateral switch, DIP, -0.5 to +13 V, ± 20 mA, M74HC4066B1, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: M74HC4066B1

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-16

From Other Seller

Part Number:M74HC4066B1
US $1.00 - 10.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

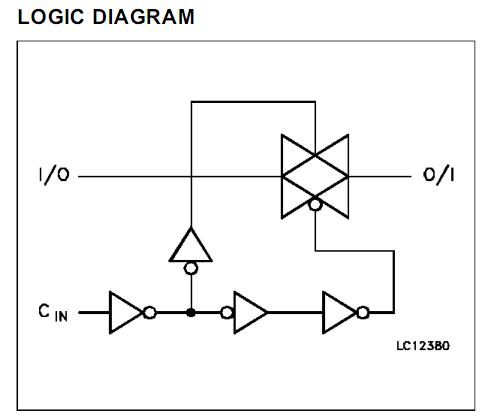

The M74HC4066B1 is a high speed CMOS quad bilateral switch fabricated in silicon gate C2MOS technology. The M74HC4066B1 has high speed performance combined with true CMOS low power consumption. The C input is provided to control the switch; the switch is ON when the C input is held high and off when Cis held low.

Parametrics

M74HC4066B1 absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +13 V; (2)VIN, DC Input Voltage: -0.5 to VCC +0.5 V; (3)VI/O, DC Input/Output Voltage: -0.5 to VCC +0.5 V; (4)IOK, Control Input DC Diode Current: ± 20 mA; (5)IIOK, I/O DC Diode Current: ± 20 mA; (6)IO, DC Output Source Sink Current Per Output Pin: ± 25 mA; (7)ICC or IGND, DC VCC or Ground Current: ± 50 mA; (8)PD, Power Dissipation: 500 mW; (9)Tstg, Storage Temperature: -65 to +150℃; (10)TL, Lead Temperature (10 sec): 300℃.

Features

M74HC4066B1 features: (1)high speed: tPD = 7 ns (TYP.) at VCC =5V; (2)low power dissipation: ICC =1 μA (MAX.) at TA =25℃; (3)high noise immunity: VNIH =VNIL =28%VCC (MIN.); (4)low on resistance: RON =50Ω (TYP.) at VCC = 9 V, II/O = 100 μA; (5)sine wave distortion; (6)0.042% (TYP.) at VCC = 4V f = 1KHz; (7)wide operating voltage range: VCC (OPR) = 2 V to 12 V; (8)pin and function compatible with 4066B.
