Product Summary

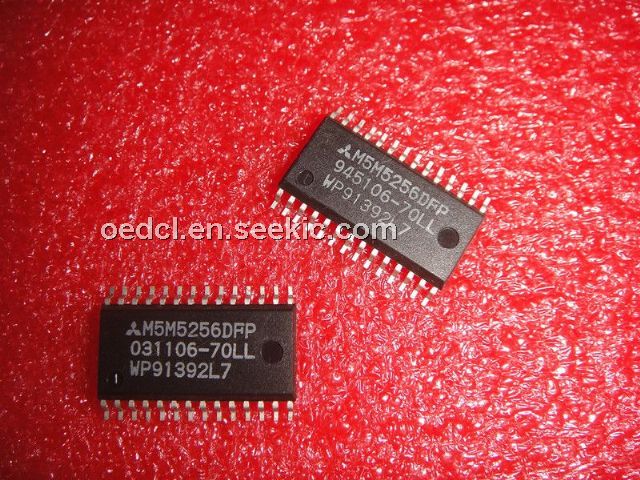

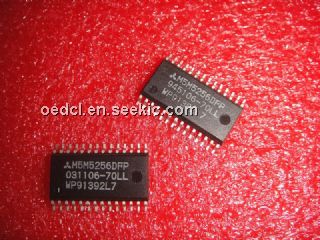

The M5M5256DFP-70LL is a 262,144-bit CMOS static RAM organized as 32,768-words by 8-bits which is fabricated using high-performance 3 polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery results in a high density and low power static RAM. Stand-by current is small enough for battery back-up application. IThe M5M5256DFP-70LL is ideal for the memory systems which require simple interface. Applications of the M5M5256DFP-70LL include Small capacity memory units.
Parametrics
M5M5256DFP-70LL absolute maximum rtaings: (1)Supply voltage: -0.3 ~ +7.0V; (2)Input voltage: -0.3 ~+Vcc+0.3v; (3)Output voltage: 0~VccV; (4)Power dissipation: 700mW; (5)Operating temperature: 0~70℃; (6)Storage temperature: -65~150℃.
Features
M5M5256DFP-70LL features: (1)Single +5V power supply; (2)No clocks, no refresh; (3)Data-Hold on +2.0V power supply; (4)Directly TTL compatible : all inputs and outputs; (5)Three-state outputs : OR-tie capability; (6)/OE prevents data contention in the I/O bus; (7)Common Data I/O; (8)Battery backup capability; (9)Low stand-by current.

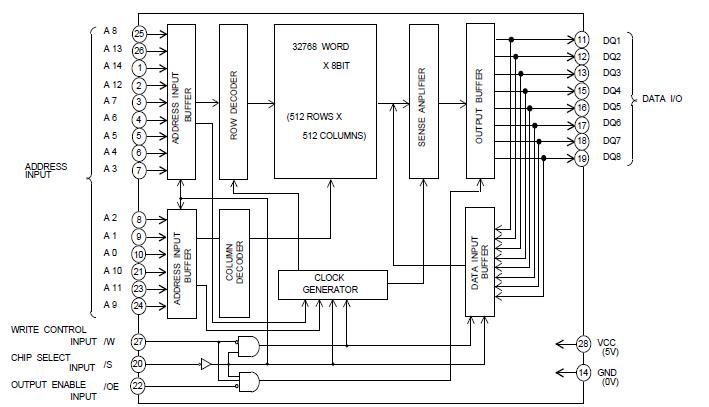

Diagrams
