Product Summary

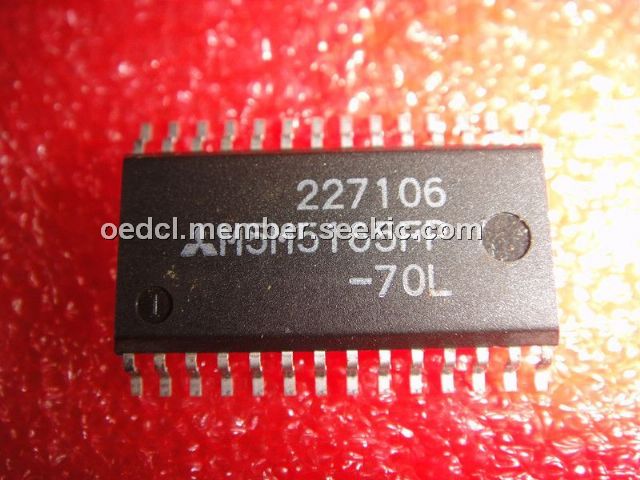

The M5M5165FP-70L is a 65536 bit CMOS static RAM organized as 8192 words by 8 bit which is fabricated using high-performance double polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery result in a high-density and low-power static RAM. The M5M5165FP-70L is ideal for the memory systems which require simple interface. The stand-by current is low enough for a battery back-up application. The application of the M5M5165FP-70L includes small capacity memory units.
Parametrics
M5M5165FP-70L absolute maximum ratings: (1)Supply voltage: -0.3V to 7V; (2)Input Voltage: -0.3V to VCC+0.3V; (3)Output Voltage: 0 to VCC V; (4)Power Dissipation: 700mW; (5)operating temperature: 0 to 70℃; (6)Storage Temperature: -65 to 150℃.
Features
M5M5165FP-70L features: (1)Single +5V power supply; (2)Fully static Operation: No Clocks, No refresh; (3)Data-hold on +2V power supply; (4)Directly TTL Compatible: All inputs and outputs; (5)Three-state outputs: OR-tie Capability; (6)Simple Memory Expantion by S1, S2; (7)OE prevents data contention on the I/O bus; (8)Common Data I/O.

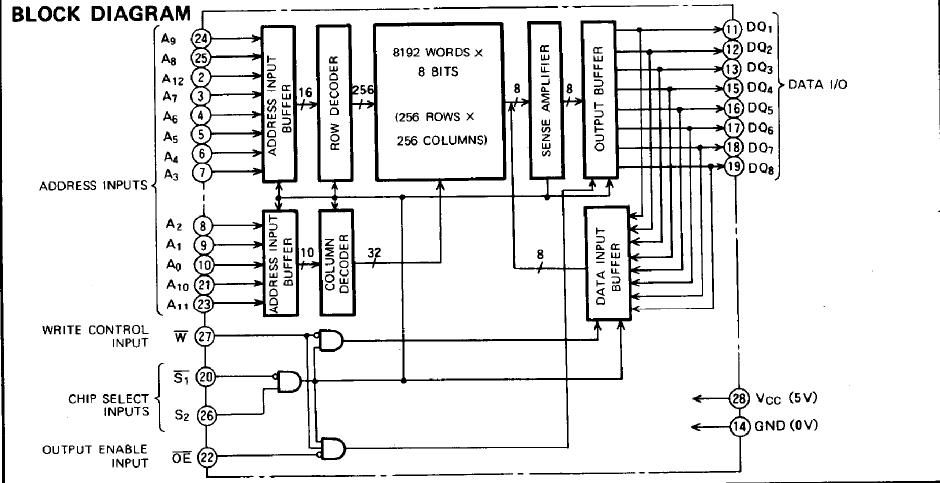

Diagrams
 |
