Product Summary

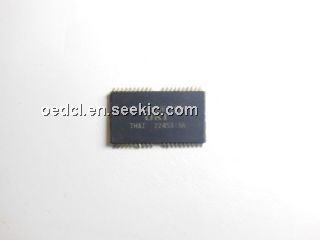

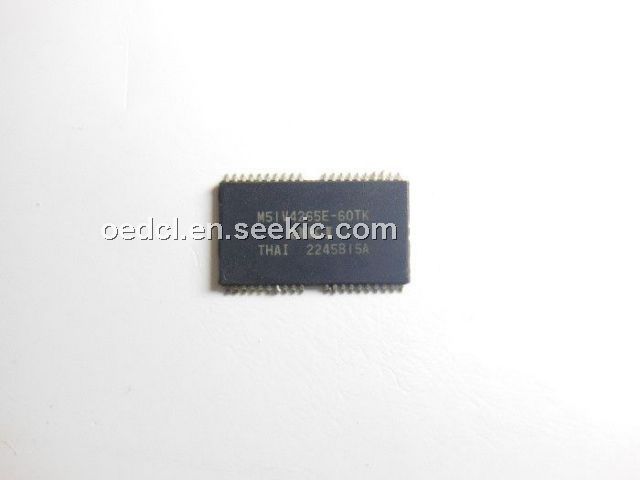

The M51V4265E-60TK is a 262,144-word × 16-bit dynamic RAM fabricated in Okis silicon-gate CMOS technology. The M51V4265E-60TK achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The M51V4265E-60TK is available in a 40-pin plastic SOJ or 44/40-pin plastic TSOP.
Parametrics
M51V4265E-60TK absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS VT: -1.0 to 4.6 V; (2)Short Circuit Output Current IOS: 50 mA; (3)Power Dissipation PD: 1 W; (4)Operating Temperature Topr: 0 to 70 °C; (5)Storage Temperature Tstg: -55 to 150 °C.
Features
M51V4265E-60TK features: (1)262,144-word × 16-bit configuration; (2)Single 3.3V power supply, ±0.3V tolerance; (3)Input: LVTTL compatible, low input capacitance; (4)Output : LVTTL compatible, 3-state; (5)Refresh: 512 cycles/8ms; (6)Fast page mode with EDO, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability.

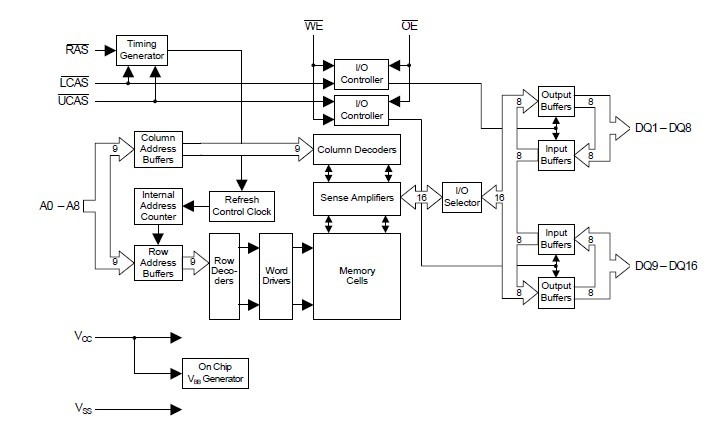

Diagrams
