Product Summary

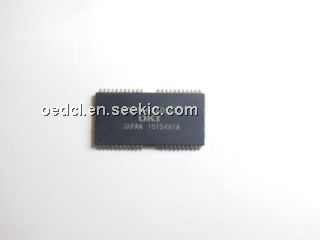

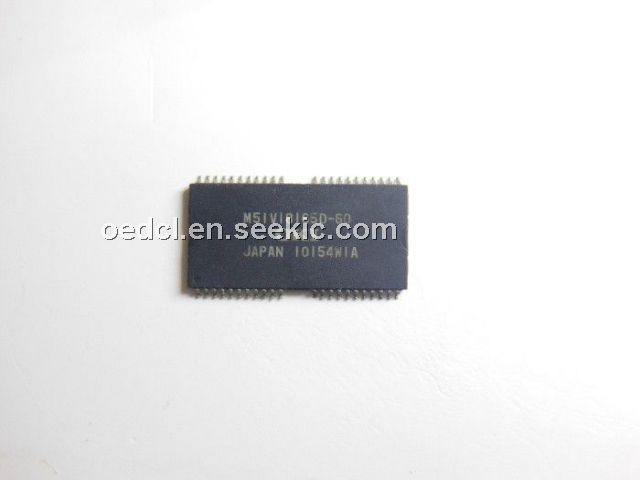

The M51V18165D-60 is a 1,048,576-word ×16-bit dynamic RAM fabricated in Okis silicongate CMOS technology. The M51V18165D-60 achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ double-layer metal CMOS process. The M51V18165D-60 is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP. The M51V18165D-60 (the self-refresh version) is specially designed for lower-power applications.
Parametrics
M51V18165D-60 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS: -0.5 to 4.6V; (2)Short Circuit Output Current: 50mA; (3)Power Dissipation: 1W; (4)Operating Temperature: 0 to 70°C; (5)Storage Temperature: -55 to 150°C.
Features
M51V18165D-60 features: (1)1,048,576-word ×16-bit configuration; (2)Single 3.3 V power supply, ±0.3 V tolerance; (3)Input: LVTTL compatible, low input capacitance; (4)Output: LVTTL compatible, 3-state; (5)Refresh: 1024 cycles/16 ms, 1024 cycles/128 ms (SL version); (6)Fast page mode with EDO, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability; (8)CAS before RAS self-refresh capability (SL version).

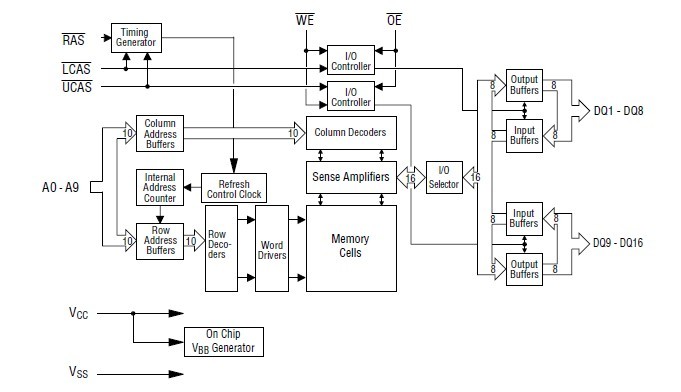

Diagrams
