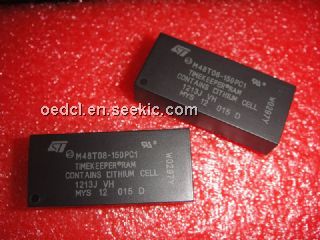

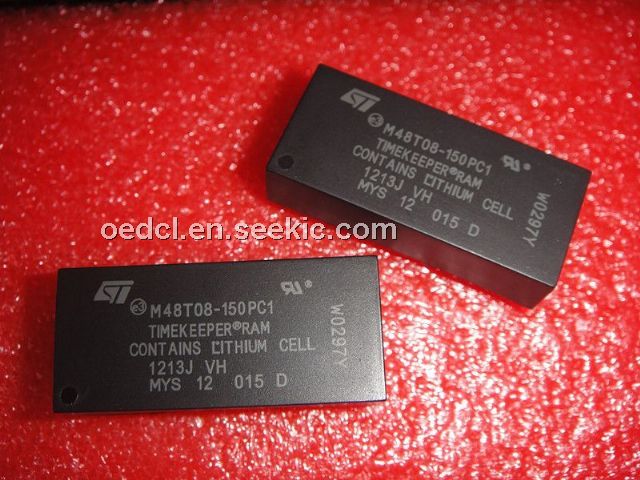

M48T08-150PC1

non-volatile static RAM , 1W, 20mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.00 / Piece
20 ~ 100 :	2.80 / Piece

PartNumber:: M48T08-150PC1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:M48T08-150PC1
US $2.80 - 3.00
M48T08-150PC1

US $0.20 - 1.60 / Piece
(0) Remove
Quantity:

piece

Product Summary

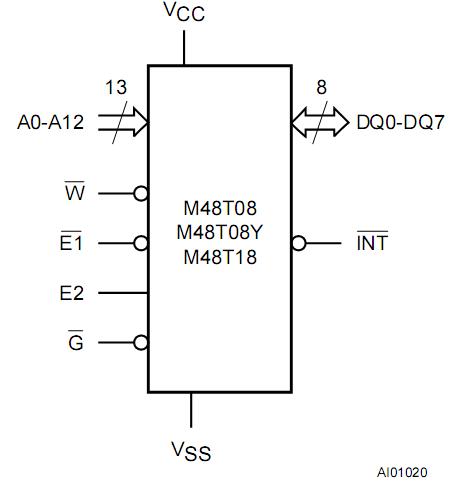

The m48T08-150pc1 is an 8K x 8 non-volatile static RAM and real time clock which is pin and functional compatible with the DS1643. The m48T08-150pc1 easily fits into many ROM, EPROM,and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed. The m48T08-150pc1 is available in two special packages to provide a highly integrated battery backed-up memory and real time clock solution.

Parametrics

m48T08-150pc1 absolute maximum ratings: (1) Ambient Operating Temperature TA: 0 to 70°C; (2) Storage Temperature (VCC Off, Oscillator Off) TSTG: -40 to 85°C; (3) Lead Solder Temperature for 10 seconds TSLD: 260°C; (4) Input or Output Voltages VIO: -0.3 to 7V; (5) Supply Voltage Vcc: -0.3 to 7V; (6) Output Current Io: 20mA; (7) Power Dissipation PD: 1W.

Features

m48T08-150pc1 features: (1) intergrated ultra low power SRAM, real time clock, power-fail control circuit, and battery; (2) bytewide RAM-like clock access; (3) BCD coded year, month, day, date, hours, minutes, and seconds; (4) typical clock accuracy of ±1 minute a month, at 25°C; (5) automatic power-fail chip deselect and write protection; (6) software controlled clock calibration for high accuracy applications; (7) pin and function compatible with DS1643 and JEDEC standard 8K×8 SRAMs; (8) RoHS compliance.
