Product Summary

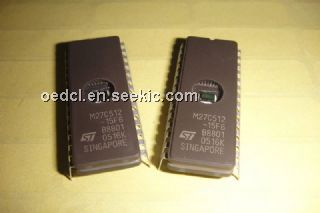

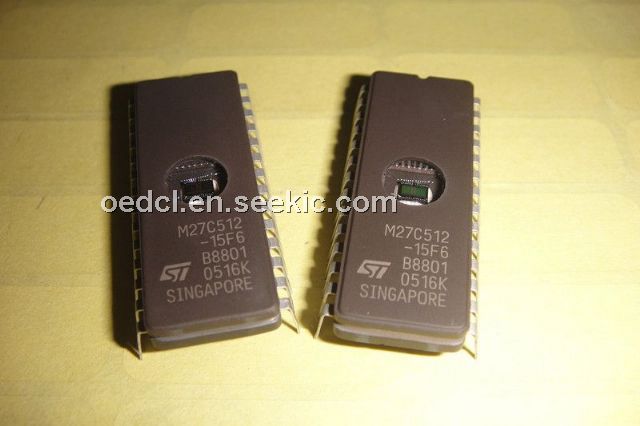

The m27c512-15f6 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable) . The m27c512-15f6 is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. The m27c512-15f6 is offered in PDIP28, PLCC32 and TSOP28 (8 x 13.4 mm) packages.
Parametrics
m27c512-15f6 absolute maximum ratings: (1) Ambient Operating Temperature TA: -40 to 125°C; (2) Temperature Under Bias TBias: -50 to 125°C; (3) Storage Temperature Tstg: -65 to 150°C; (4) Input or Output Voltage (except A9) VIO: -2 to 7V; (5) Supply Voltage: -2 to 7V; (6) A9 Voltage VA9: -2 to 13.5V; (7) Program Supply Voltage VPP: -2 to 14V.
Features
m27c512-15f6 features: (1) 5V±10% supply voltage in READ operation; (2) access time: 45ns; (3) low power CMOS consumption; (4) programming voltage: 12.75±0.25V; (5) programming times of around 6 sec.; (6) electronic signature; (7) packages: lead-free versions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C512-15F6 |
STMicroelectronics |
EPROM 512K (64Kx8) 150ns |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
M27C1001-10B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C6 |
STMicroelectronics |
EPROM OTP 1Mx8 |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
