Product Summary

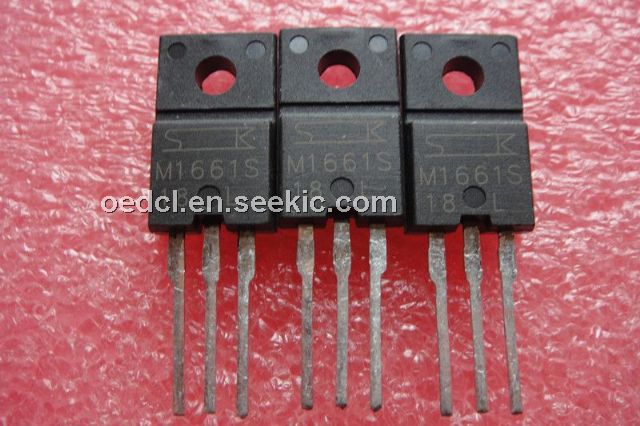

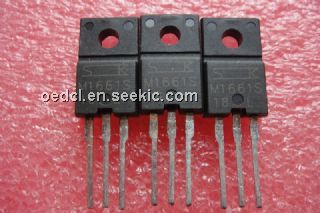

The M1661S is a Triac.

Parametrics

M1661S absolute maximum ratings: (1)Repetitive peak off-state voltage: 600V; (2)RMS on-state current: 16A; (3)Surge on-state current: 150A; (4)Peak gate voltage: 10V; (5)Peak gate current: 2A; (6)Peak gate power loss: 5W; (7)Average gate power loss: 0.5W; (8)Junction temperature: -40 to +125℃; (9)Storage temperature: -40 to +125℃; (10)Isolation voltage: 1500Vrms.

Features

M1661S features: (1)Repetitive peak off-state voltage: VDRM=400, 600V; (2)RMS on-state current: IT(RMS)=16A; (3)Gate trigger current: IGT=30mA max ; (4)Isolation voltage: VISO=1500V(50Hz Sine wave, RMS); (5)UL approved type available.

Diagrams

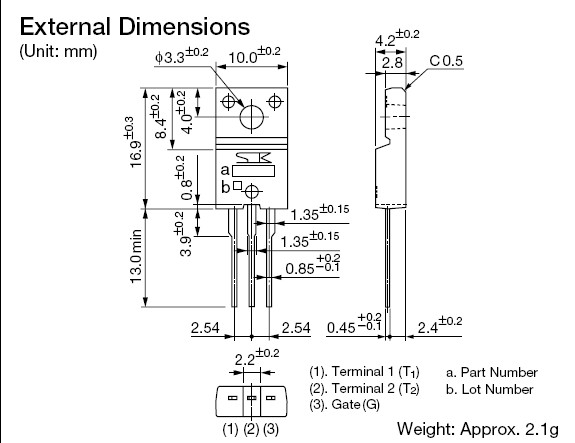

M1661S dimension
