Product Summary
The M11L416256SA-35T is a randomly accessed solid state memory, organized as 262,144 x 16 bits device. It offers Extended Data-Output , 3.3V( 10%) single power supply. Access time (-35) , self-refresh and package type (SOJ, TSOP II) are optional features of this family. The M11L416256SA-35T has ±CAS - before - RAS , RAS -only refresh and Hidden refresh capabilities. Two access modes are supported by the M11L416256SA-35T: Byte access and Word access. Use only one of the two CAS and leave the other staying high will result in a BYTE access. WORD access happens when two CAS ( CASL , CASH ) are used.
Parametrics
M11L416256SA-35T absolute maximum ratings: (1)Voltage on Any pin Relative to Vss: -0.5V to +4.6V; (2)Operating Temperature, TA (ambient): 0 °C to +70 °C; (3)Storage Temperature (plastic): -55 °C to +150 °C; (4)Power Dissipation: 0.8W; (5)Short Circuit Output Current: 50mA.
Features
M11L416256SA-35T features: (1)X16 organization; (2)EDO (Extended Data-Output)access mode; (3)2 CAS Byte/Word Read/Write operation; (4)Single 3.3V ( ± 10%)power supply; (5)LVTTL-compatible inputs and outputs; (6)512-cycle refresh in 8ms; (7)Refresh modes :RAS only, CAS BEFORE RAS (CBR)and HIDDEN capabilities; (8)Self-refresh capability; (9)JEDEC standard pinou.

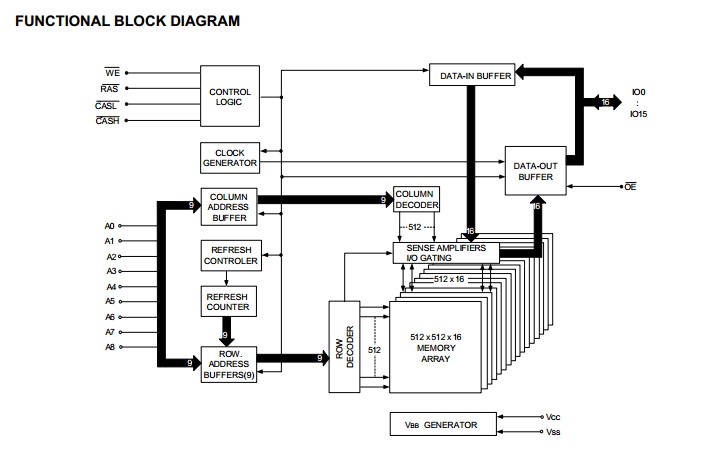

Diagrams
