Product Summary
The LY62L6416MN-70LL is a 1,048,576-bit low power CMOS static random. It access memory organized as 65,536 words by 16 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature. The LY62L6416MN-70LL is well designed for low power application, and particularly well suited for battery back-up nonvolatile memory application. The LY62L6416MN-70LL operates from a single power supply of 2.7V ~ 3.6V and all inputs and outputs are fully TTL compatible.
Parametrics
LY62L6416MN-70LL absolute maximum ratings: (1)Voltage on VCC relative to VSS: -0.5 to 4.6V; (2)Voltage on any other pin relative to VSS: -0.5 to VCC+0.5V ; (3)Operating Temperature: 0℃ to 70℃(C grade), -20℃ to 80℃(E grade), -40℃ to 85℃(I grade); (4)Storage Temperature: -65℃ to 150℃; (5)Power Dissipation: 1W; (6)DC Output Current: 50mA.
Features
LY62L6416MN-70LL features: (1)Fast access time: 45/55/70ns; (2)Low power consumption: Operating current: 23/20/18mA (TYP.); (3)Standby current: 1μA (TYP.) LL/SL -version; (4)Single 2.7V~3.6V power supply; (5)All inputs and outputs TTL compatible; (6)Tri-state output; (7)Data retention voltage: 1.5V (MIN.); (8)Package: 44-pin 400 mil TSOP-II, 48-ball 6mm x 8mm TFBGA.

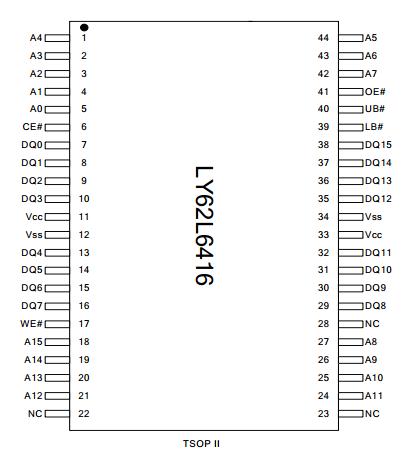

Diagrams
