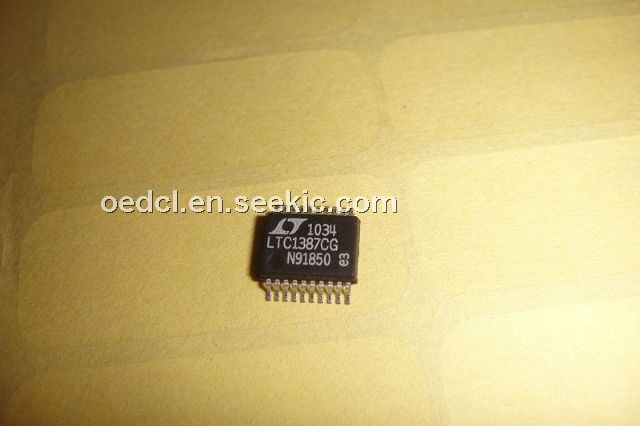

LTC1387CG

CMOS bidirectional transceiver, 25V, 7mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.20 / Piece
20 ~ 100 :	1.00 / Piece

PartNumber:: LTC1387CG

Brand:: LT Electronics Co., Ltd. - LT | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-10

From Other Seller

Part Number:LTC1387CG
US $1.00 - 1.20
Quantity:

piece

Product Summary

The ltc1387cg is a low power reconfigurable CMOS bidirectional transceiver. The ltc1387cg can be configured as an RS485 differential port or as two RS232 single-ended ports. Applications of the ltc1387cg include: Point-of-Sale Terminals, Software Selectable Multiprotocol Interface Ports, Low Power Interface, Cable Repeaters and Level Translators.

Parametrics

ltc1387cg absolute maximum ratings: (1) Supply Voltage (VCC) : 6.5V; (2) Input Voltage Drivers: -0.3 to (Vcc +0.3V) , Receivers: -25 to 25V, 485/232, ON, DXEN RXEN, SLEW: -0.3 to (Vcc +0.3V) ; (3) Output Voltage Drivers: -18 to 18V, Receivers: -0.3 to (Vcc+0.3V) ; (4) Short-Circuit Duration Output: Indefinite; (5) Operating Temperature Range: 0 to 70°C; (6) Storage Temperature Range: -65 to +150°C; (7) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

ltc1387cg features: (1) Two RS232 Transceivers or One RS485 Transceiver; (2) Operates from a Single 5V Supply; (3) Guaranteed Receiver Output with Inputs Floating or Shorted to Ground; (4) Logic Selectable Fast/Slow RS485 Driver Slew Rate; (5) Self-Testing Capability in Loopback Mode; (6) Separate Driver and Receiver Enable Controls; (7) Driver Maintains High Impedance in Three-State, Shutdown or with Power Off; (8) Receiver Inputs Can Withstand ±25V.
