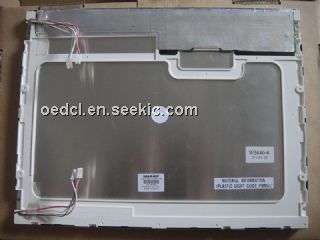

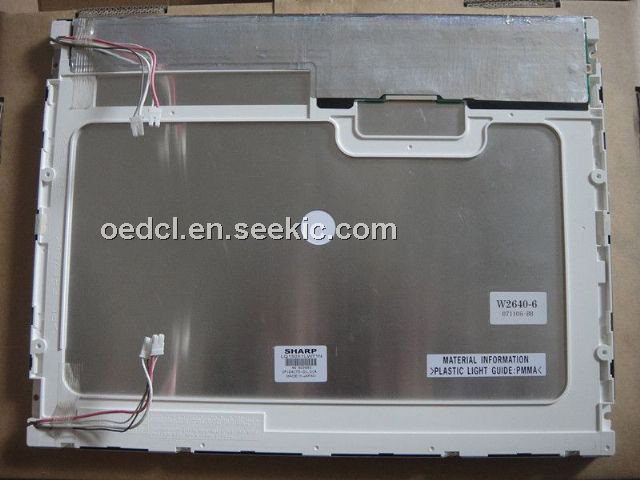

Product Summary

The LQ150X1LW71N is a TFT-LCD Module. This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a back light unit. Graphics and texts can be displayed on a 1024×RGB×768 dots panel with about 16 million colors by using LVDS (Low Voltage Differential Signaling) and supplying +3.3V DC supply voltages for TFT-LCD panel driving and supply voltage for backlight.

Parametrics

LQ150X1LW71N absolute maximum ratings: (1)Supply voltage : 0 to +4.0 Ｖ; (2)Storage temperature : -25 to +60℃; (3)Operating temperature (Ambient) : -0 to +50℃.

Features

LQ150X1LW71N features: (1)Supply voltage : +3.0 to +3.6 V ; (2)Current dissipation : 630mA ; (3)Permissive input ripple voltage : 100 mVp-p; (4)Terminate Resister : 100 Ω.

Diagrams

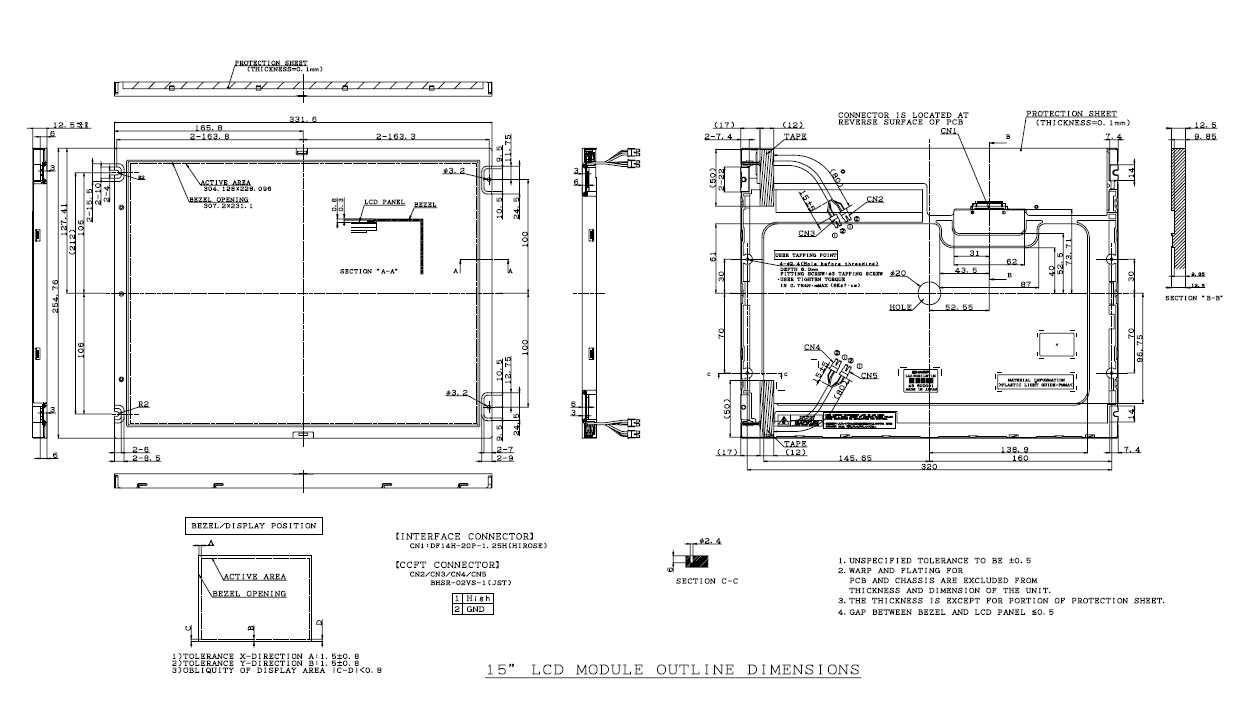

LQ150X1LW71N dimension
