Product Summary

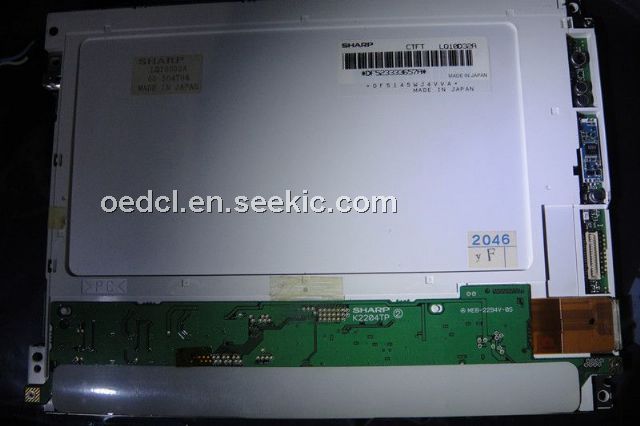

The LQ10D32A is a color active matrix LCD module incorporating amorphous silicon TFT(Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit.
Parametrics
LQ10D32A absolute maximum ratings: (1)Input voltage: -0.3 to Vcc+0.3V; (2)+5V supply voltage: 0 to +6V; (3)Storage temperature: -25 to +60℃; (4)Operating temperature: 0 to +50℃.
Features
LQ10D32A specifications: (1)Display size: 26 diagonal cm; (2)Active area: 211.2(H)×159.4(V) mm; (3)Pixel pitch: 0.3309H) ×0.3309V) mm; (4)Pixel configuration: R,G,B vertical stripe; (5)Display mode: Normally white; (6)Unit outline dimensions: 246.5(W)×179.4(H)×9.5(D) mm.

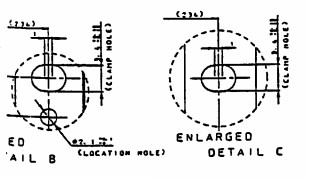

Diagrams
