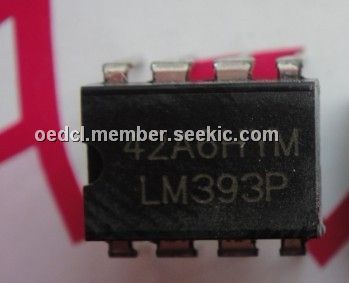

LM393P

dual differential comparator, 8-DIP, 2 V ~ 36 V, 20 mA, LM393P, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~6.00

PartNumber:: LM393P

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-16

From Other Seller

Part Number:LM393P
US $1.00 - 6.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

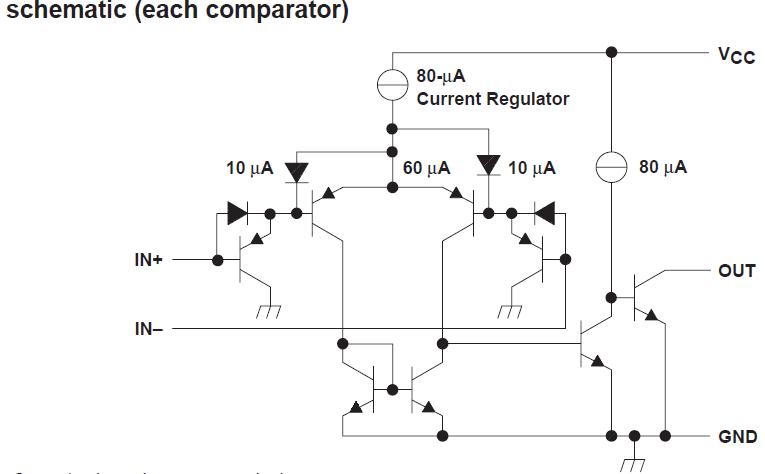

The LM393P is a dual differential comparator. The LM393P consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393P is characterized for operation from 0℃ to 70℃.

Parametrics

LM393P absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): –0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited; (7)Package thermal impedance, θJA: 97℃/W; (8)Case temperature for 60 seconds: 260℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: –65 to 150℃.

Features

LM393P features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: 2 V to 36 V; (3)Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (4)Low Input Bias Current: 25 nA Typ; (5)Low Input Offset Current; (6)Low Input Offset Voltage: 2 mV Typ; (7)Common-Mode Input Voltage Range Includes Ground; (8)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±6 V; (9)Low Output Saturation Voltage; (10)Output Compatible With TTL, MOS, and CMOS.
