Product Summary

The LM261H is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement. The LM261H has been optimized for greater speed performance and lower input offset voltage. Typically delay varies only 3 ns for over-drive variations of 5 mV to 500 mV. It may be operated from op amp supplies(±15V).

Parametrics

LM261H absolute maximum ratings: (1)Positive Supply Voltage, V+: +16V; (2)Negative Supply Voltage, V-: -16V; (3)Gate Supply Voltage, VCC: +7V; (4)Output Voltage: +7V; (5)Differential Input Voltage: ±5V; (6)Input Common Mode Voltage: ±6V; (7)Power Dissipation: 600 mW; (8)Storage Temperature Range: -65℃ to +150℃; (9)Operating Temperature Range: -25℃ to +85℃; (10)Lead Temp. (Soldering, 10 seconds): 260℃; (11)For Any Device Lead Below V-: 0.3V.

Features

LM261H features: (1)Independent strobes; (2)Guaranteed high speed: 20 ns max; (3)Tight delay matching on both outputs; (4)Complementary TTL outputs; (5)Operates from op amp supplies: ±15V; (6)Low speed variation with overdrive variation; (7)Low input offset voltage; (8)Versatile supply voltage range.

Diagrams

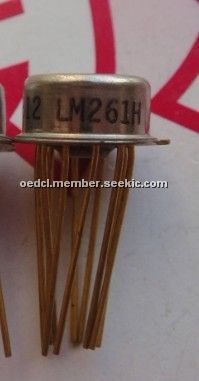

LM261H diagram
