Product Summary

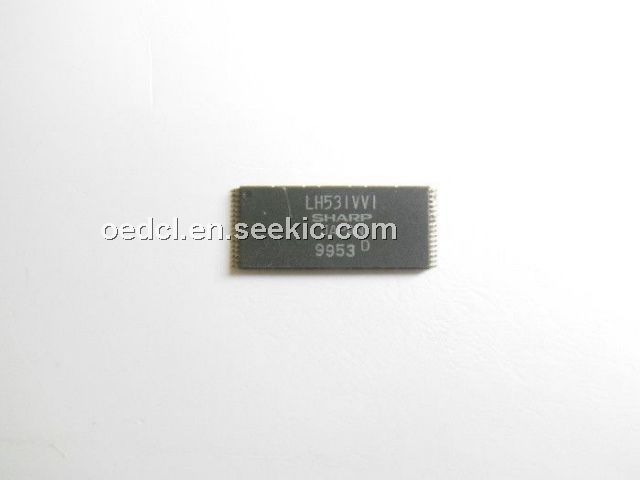

The LH531VV1 is a 1M-bit mask-programmable ROM organized as 131,072 × 8 bits. It is fabricated using silicon-gate CMOS process technology.
Parametrics
LH531VV1 absolute maximum ratings: (1)Supply voltage VCC: -0.3 to +7.0 V; (2)Input voltage VIN: -0.3 to VCC + 0.3 V; (3)Output voltage VOUT: -0.3 to VCC + 0.3 V; (4)Operating temperature Topr: 0 to +70 °C; (5)Storage temperature Tstg: -65 to +150 °C; (6)Operating current ICC1 tRC = 100 ns: 50 mA; (7)Input rise/fall time: 10 ns.
Features
LH531VV1 features: (1)131,072 words ×8 bit organization; (2)Access time: 100 ns (MAX.); (3)Power consumption: Operating: 275 mW (MAX.), Standby: 550 mW (MAX.); (4)Mask-programmable OE1/OE1/DC; (5)Fully-static operation; (6)TTL-compatible I/O; (7)Three-state outputs; (8)Single +5 V power supply.

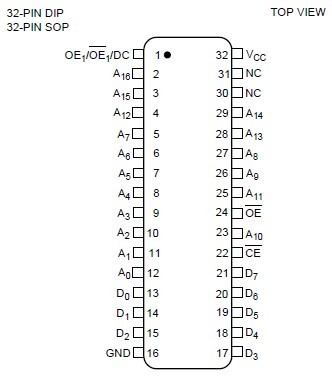

Diagrams
