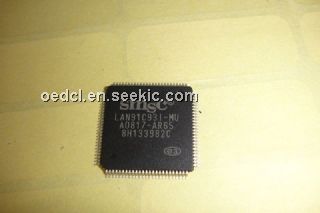

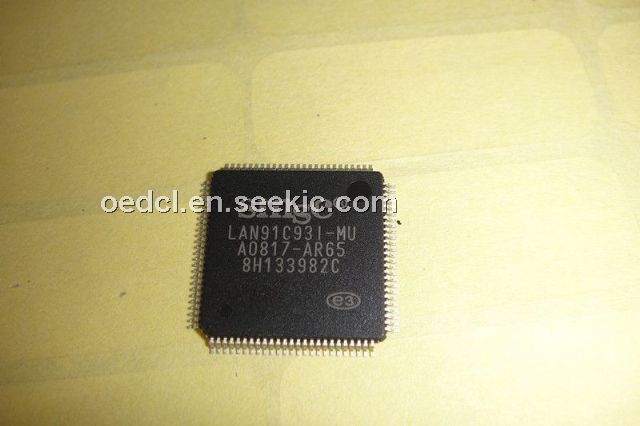

LAN91C93I-MU

Duplex Ethernet Controller, +7V, +0.3V, LAN91C93I-MU,TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.70~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.00 / Piece
11 ~ 100 :	5.70 / Piece

PartNumber:: LAN91C93I-MU

Brand:: SMSC Corporation - SMSC | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-07

From Other Seller

Part Number:LAN91C93I-MU
US $5.70 - 6.00
Quantity:

piece

Product Summary

The LAN91C93I-MU is a VLSI, local bus interface Ethernet Controller. The LAN91C93I-MU integrates all MAC and physical layer functions, as well as the packet RAM, needed to implement a high performance 10BASE-T (twisted pair) node. For 10BASE5 (thick coax), 10BASE2 (thin coax), and 10BASE-F (fiber) implementations, the LAN91C93I-MU interfaces to external transceivers via the provided AUI port. Only one additional IC is required for most applications.

Parametrics

LAN91C93I-MU absolute maximum ratings: (1)Operating Temperature Range: -40℃ to 85℃; (2)Storage Temperature Range: -55℃ to +150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: VCC +0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum VCC: +7V.

Features

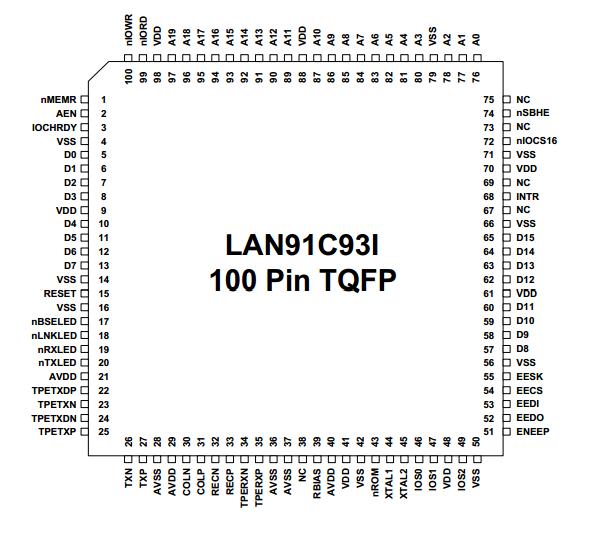

LAN91C93I-MU features: (1)Non-PCI Single-Chip Ethernet Controller; (2)Fully Supports Full Duplex Switched Ethernet; (3)Supports Enhanced Transmit Queue Management; (4)6K Bytes of On-Chip RAM; (5)Supports IEEE 802.3 (ANSI 8802-3) Ethernet Standards; (6)Supports single 5V or 3.3V VCC Design; (7)Supports Mixed Voltage External PHY Designs; (8)Supports Industrial Temp -40℃ to 85℃; (9)Low Power CMOS Design; (10)100 Pin QFP and TQFP (1.0mm body Thickness) packages; green, lead-free packages also available.
