Product Summary

The L9822EPD is an octal serial solenoid driver. The L9822E is an octal low side solenoid driver realized in Multipower-BCD technology particularly suited for driving lamps, relays and solenoids in automotive environment. The DMOS outpts L9822E has a very low power consumption. Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol. The L9822Efeatures the outputs status monitoring function.

Parametrics

L9822EPD absolute maximum ratings: (1)DC Logic Supply: – 0.7 to 7 V; (2)Output Voltage: – 0.7 to 40 V; (3)Continous Output Current (for each output): Int. Limited A; (4)Junction and Storage Temperature Range: – 40 to 150 ℃.

Features

L9822EPD features: (1)eight lowrdson dmos outputs (0.5W AT IO = 1A@25℃ VCC = 5V± 5%); (2)8 bit serial input data (spi) 8 bit serial diagnostic output for overload and open circuit conditions; (3)output short circuit protection chip enable select function(active low) internal 36V clamping for each output ; (4)cascade able with another octal driver ; (5)low quiescent current (10mA MAX.) ; (6)package multiwatt15, PowerSO20 and SO20L.

Diagrams

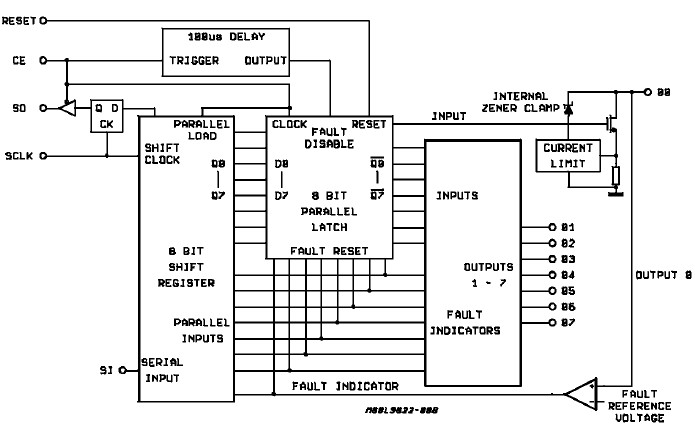

L9822EPD block diagram
