Product Summary

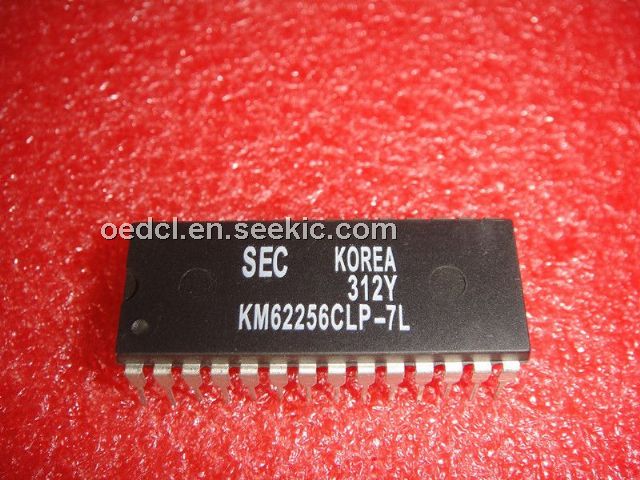

The km62256clp-7l is a 32Kx8 bit Low Power CMOS Static RAM. The km62256clp-7l is fabricated by SAMSUNG advanced CMOS process technology. The km62256clp-7l supports various operating temperature ranges and has various package types for user flexibility of system design.
Parametrics
km62256clp-7l absolute maximum ratings: (1) Voltage on any pin relative to Vss VIN,VOUT: -0.5 to VCC +0.5V; (2) Voltage on Vcc supply relative to Vss Vcc: -0.5 to 7V; (3) Power Dissipation PD: 1W; (4) Storage temperature TSTG: -65 to +150°C; (5) Operating Temperature TA: 0 to 70°C; (6) Soldering temperature and time TSOLDER: 260°C, 10sec (Lead Only) .
Features
km62256clp-7l features: (1) Process Technology : 0.7μm CMOS; (2) Organization: 32Kx8; (3) Power Supply Voltage : Single 5V±10%; (4) Low Data Retention Voltage: 2V(Min) ; (5) Three state output and TTL Compatible; (6) Package Type: 28-DIP-600, 28-SOP-450, 28-TSOP1 -0813.4F/R.

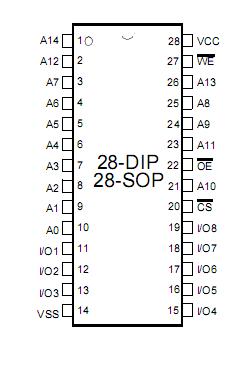

Diagrams
