Product Summary

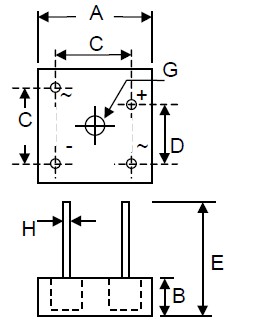

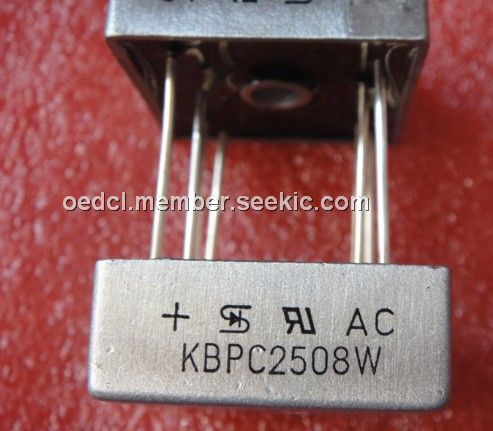

The KBPC2508W is a high current bridge rectifier.
Parametrics
KBPC2508W absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM/ Working Peak Reverse Voltage VRWM/ DC Blocking Voltage VR: 800V; (2)RMS Reverse Voltage VR(RMS): 560V; (3)Average Rectifier Output Current @TC = 60℃: 25A; (4)Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave Superimposed on rated load (JEDEC Method): 400A; (5)Forward Voltage Drop (per element): 1.2V; (6)Peark Reverse Current @TC = 25℃: 10A; (7)At Rated DC Blocking Voltage @TC = 125℃: 1.0mA; (8)Typical Junction Capacitance (per element)Cj: 300pF; (9)RMS Isolation Voltage from Case to Lead VISO: 2500 V; (10)Operating and Storage Temperature Range Tj, TSTG: -65 to +150 ℃.
Features
KBPC2508W features: (1)Diffused Junction; (2)Low Reverse Leakage Current; (3)Low Power Loss, High Efficiency; (4)Electrically Isolated Metal Case for Maximum Heat Dissipation; (5)Case to Terminal Isolation Voltage 2500V; (6)UL Recognized File # E157705.
