Product Summary
The IS42S16800D-7TLI 128Mb Synchronous DRAM achieves high-speed data transfer using pipeline architecture. All inputs and outputs signals refer to the rising edge of the clock input. The 128Mb SDRAM IS42S16800D-7TLI is organized as follows.
Parametrics
IS42S16800D-7TLI absolute maximum ratings: (1)Maximum Supply Voltage: –0.5 to +4.6 V; (2)Maximum Supply Voltage for Output Buffer: –0.5 to +4.6 V; (3)Input Voltage: –0.5 to VDD + 0.5 V; (4)Output Voltage: –1.0 to VDDQ + 0.5 V; (5)MAX Allowable Power Dissipation: 1 W; (6)Output Shorted Current: 50 mA; (7):Operating Temperature Com.: 0 to +70 °C, Ind.: –40 to +85; (8)TSTG Storage Temperature: –55 to +150 °C.
Features
IS42S16800D-7TLI features: (1)Clock frequency: 166, 143, 133 MHz; (2)Fully synchronous; all signals referenced to a positive clock edge; (3)Internal bank for hiding row access/precharge; (4)Power supply: 3.3V; (5)LVTTL interface; (6)Programmable burst length– (1, 2, 4, 8, full page); (7)Programmable burst sequence: Sequential/Interleave; (8)Auto Refresh (CBR); (9)Self Refresh with programmable refresh periods; (10)4096 refresh cycles every 64 ms; (11)Random column address every clock cycle; (12)Programmable CAS latency (2, 3 clocks); (13)Burst read/write and burst read/single write operations capability; (14)Burst termination by burst stop and precharge command; (15)Industrial Temperature Availability; (16)Lead-free Availability.

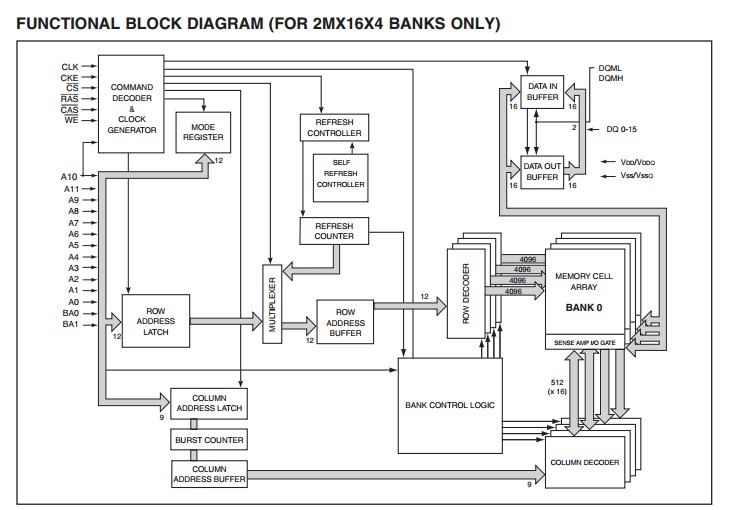

Diagrams

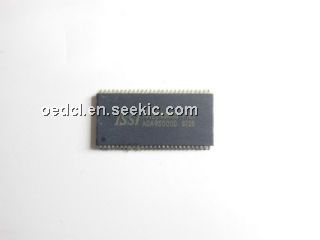

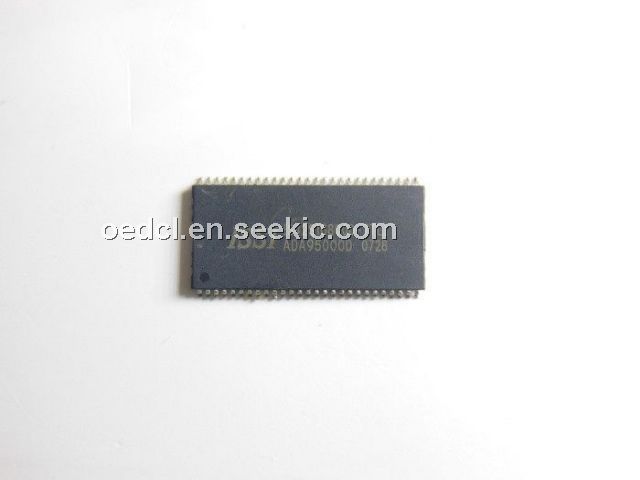

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS42S16800D-7TLI-TR |
ISSI |
DRAM 128M 8Mx16 143Mhz |
Data Sheet |
Negotiable |
|
||||
|
IS42S16800D-7TLI |
ISSI |
DRAM 128M 8Mx16 143Mhz |
Data Sheet |
Negotiable |
|
||||
