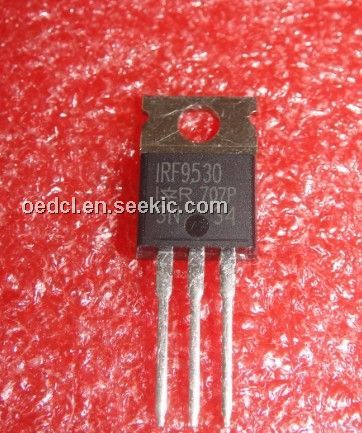

IRF9530

IRF9530, HEXFET transistor, TO, -100V, -12A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.20 / Piece
11 ~ 100 :	1.00 / Piece

PartNumber:: IRF9530

Brand:: International Rectifier - IR | Pack: TO | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:IRF9530
US $1.00 - 1.20
Quantity:

piece

Product Summary

The IRF9530 is a HEXFET transistor. The P-Channel HEXFETs are designed for applications which require the convenience of reverse polarity operation. They retain all of the features of the more common N-Channel HEXFETs such as voltage control, very fast switching, ease of paralleling, and excellent temperature stability. The P-ChanneIIRF9530 device is an approximate electrical complement to the N-Channel IRF520 HEXFET. P-Channel HEXFETs are intended for use in power stages where complementary symmetry with N-Channel devices offers circuit simplification. They are also very useful In drive stages because of the circuit versatility offered by the reverse polarity connection. Applications include motor control, audio amplifiers, switched mode converters, control circuit and pulse amplifiers.

Parametrics

IRF9530 absolute maximum ratings: (1)Drain - Source Voltage : -100 V; (2)Drain - Gate Voltage (RGS =20KΩ) : -100 V; (3)Continuous Drain Current : -12 A; (4)Continuous Drain Current : -7.5 A; (5)Gate - Source Voltage : ±20 V; (6)Max. Power Dissipation : 75 W; (7)Linear Derating Factor : 0.6 W/K; (8)Operating Junction and Storage Temperature Range : -55 to 150℃.

Features

IRF9530 features: (1)P-Channel Versatility; (2)Compact Plastic Package; (3)Fast Switching; (4)Low Drive Current; (5)Ease of Paralleling; (6)Excellent Temperature Stability.
