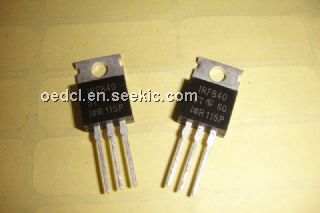

IRF840

IRF840, SMPS MOSFET, TO, 8A, 125W, ±30 V, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.90 / Piece

PartNumber:: IRF840

Brand:: International Rectifier - IR | Pack: TO | D/C: 07+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-05

From Other Seller

Part Number:IRF840
US $0.90 - 1.00
IRF840PBF

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF840 is a SMPS MOSFET. The applications of the IRF840 include Switch Mode Power Supply (SMPS), Uninterruptable Power Supply, High speed power switching, Lead-Free.

Parametrics

IRF840 absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 8.0 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 5.1 A; (3)Pulsed Drain Current, IDM: 32 A; (4)PD @TC = 25℃ Power Dissipation: 125 W; (5)Linear Derating Factor: 1.0 W/℃; (6)Gate-to-Source Voltage, VGS: ±30 V; (7)Peak Diode Recovery dv/dt, dv/dt: 5.0 V/ns; (8)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to + 150℃; (9)Soldering Temperature, for 10 seconds: 300 (1.6mm from case)℃; (10)Mounting torqe, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRF840 features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss Specified (See AN1001).
